Frontend Loader

Low cost material handling machine on a agricultural tractor.

catalog
Catalog
video
Video

USP

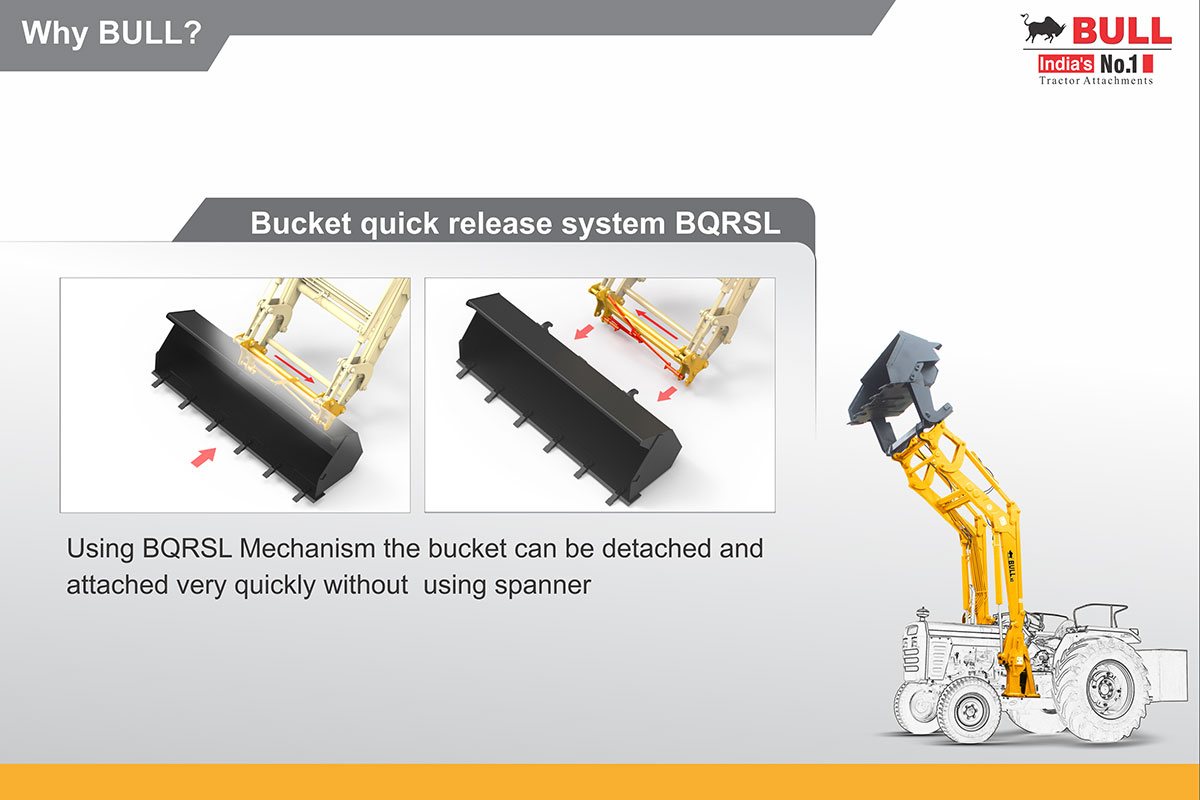

  • 39 types of optional application specific interchangeable buckets areeasily detachable even without using spanner
  • Front end loader can also be fitted to old tractors

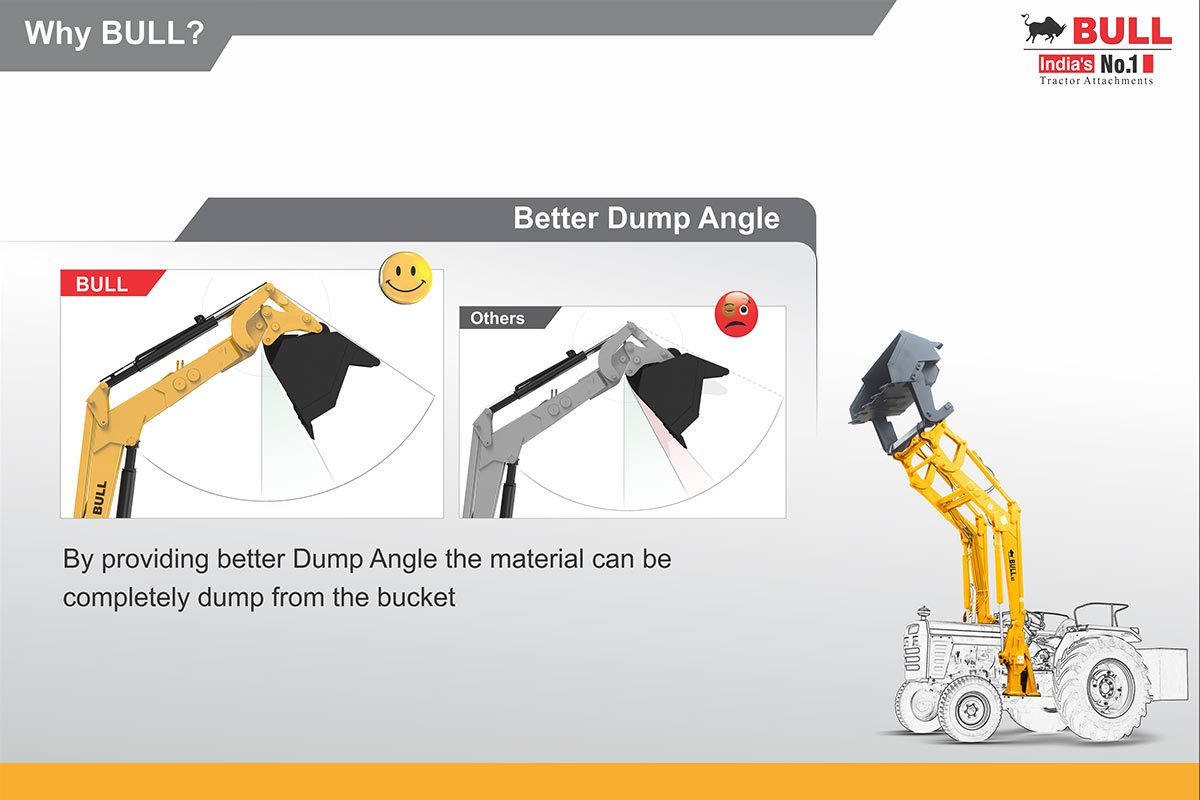

  • Excellent bucket angle- 45 and 90 degree
  • Designed for heavy duty applications

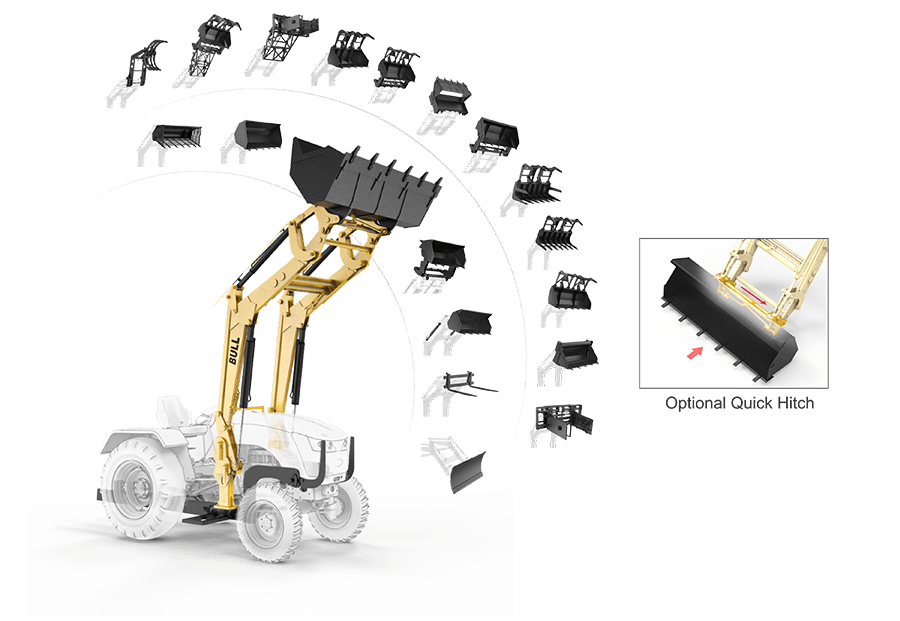

Bucket Options

Different types of application specific quick interchangeable loader bucket options.

Technical information

  • Dimensions
  • Specification (2 Wheel)
  • Specification (4 Wheel)

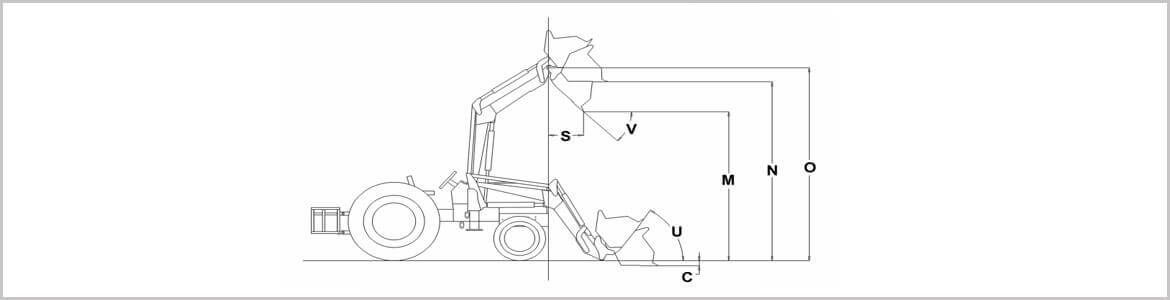

Dimensions

frontend-loader-blueprint

Specification (2 Wheel)

    STD V2 LOADER EXT_HT_V2_LOADER MAXX_V2_LOADER
  LOADERS ( on 2 Wheel Drive Trs ) mm(FEET_INCHES) mm(FEET_INCHES) mm(FEET_INCHES)
O Loader Hinge Pin Height 3350 (11') 3700 (12' 13") 3700 (12' 13")
N Load Over Height 3100 (10' 2") 3520 (11' 5") 4350 (14' 3")
M Dump Height @45° 2680 (8' 8") 2988 (9' 8") 2988 (9' 8")
  WITH OPTIONAL BOOSTER BUCKET(DUMP HEIGHT) - 4195 (13' 7") 4195 (13' 7")

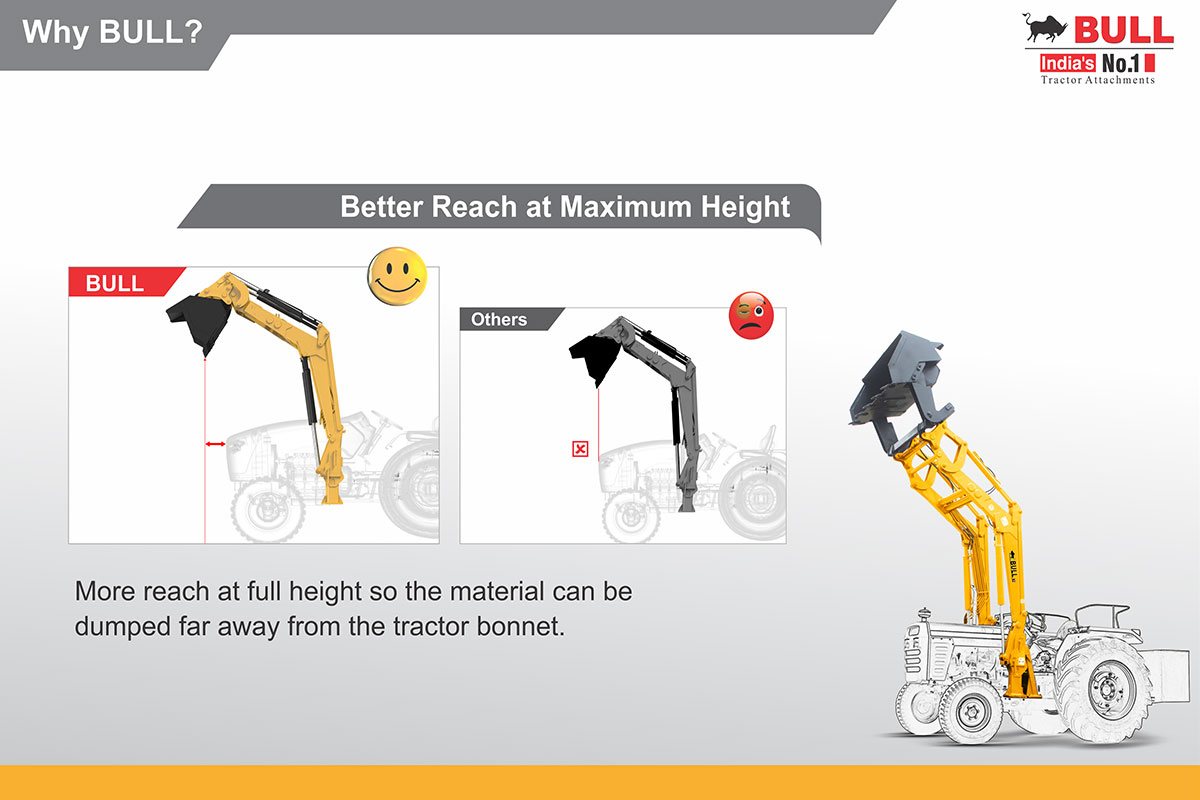

S Reach At Full Height Fully Dumped 700 (2'3") 700 (2'3") 700 (2'3")
C Working Depth 150 (5") 150 (5") 150 (5")
V Dump Angle 90° 90° 45°
U Roll Back At Ground 60° 60° 60°
  Bucket Capacity 0.6 cu.m. (900 kg) 0.6 cu.m. (900 kg) 0.6 cu.m. (900 kg)
  Output (90% bucket cap & 40 sec opn cycle time)* 48.6 cum/hr = 1700 cu.ft/hr

Specification (4 Wheel)

    STD V2 LOADER EXT_HT_V2_LOADER MAXX_V2_LOADER
  LOADERS ( on 4 Wheel Drive Trs ) mm(FEET_INCHES) mm(FEET_INCHES) mm(FEET_INCHES)
O Loader Hinge Pin Height 3350 (11') 3700 (12' 13") 3700 (12' 13")
N Load Over Height 3100 (10' 2") 3520 (11' 5") 4350 (14' 3")
M Dump Height @45° 2680 (8' 8") 2988 (9' 8") 2988 (9' 8")
  WITH OPTIONAL BOOSTER BUCKET(DUMP HEIGHT) - 4195 (13' 7") 4195 (13' 7")
S Reach At Full Height Fully Dumped 700 (2'3") 700 (2'3") 700 (2'3")
C Working Depth 150 (5") 150 (5") 150 (5")
V Dump Angle 90° 90° 45°
U Roll Back At Ground 60° 60° 60°
  Bucket Capacity 0.75 cu.m.(1200 kg) 0.75 cu.m.(1200 kg) 0.75 cu.m.(1200 kg)
  Output (90% bucket cap & 40 sec opn cycle time)* 60 cum/hr = 2100 cu.ft/hr

Videos

Images

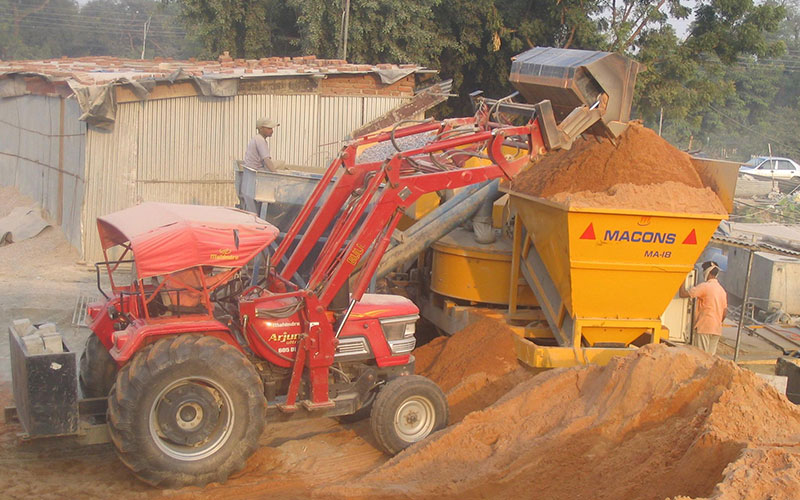

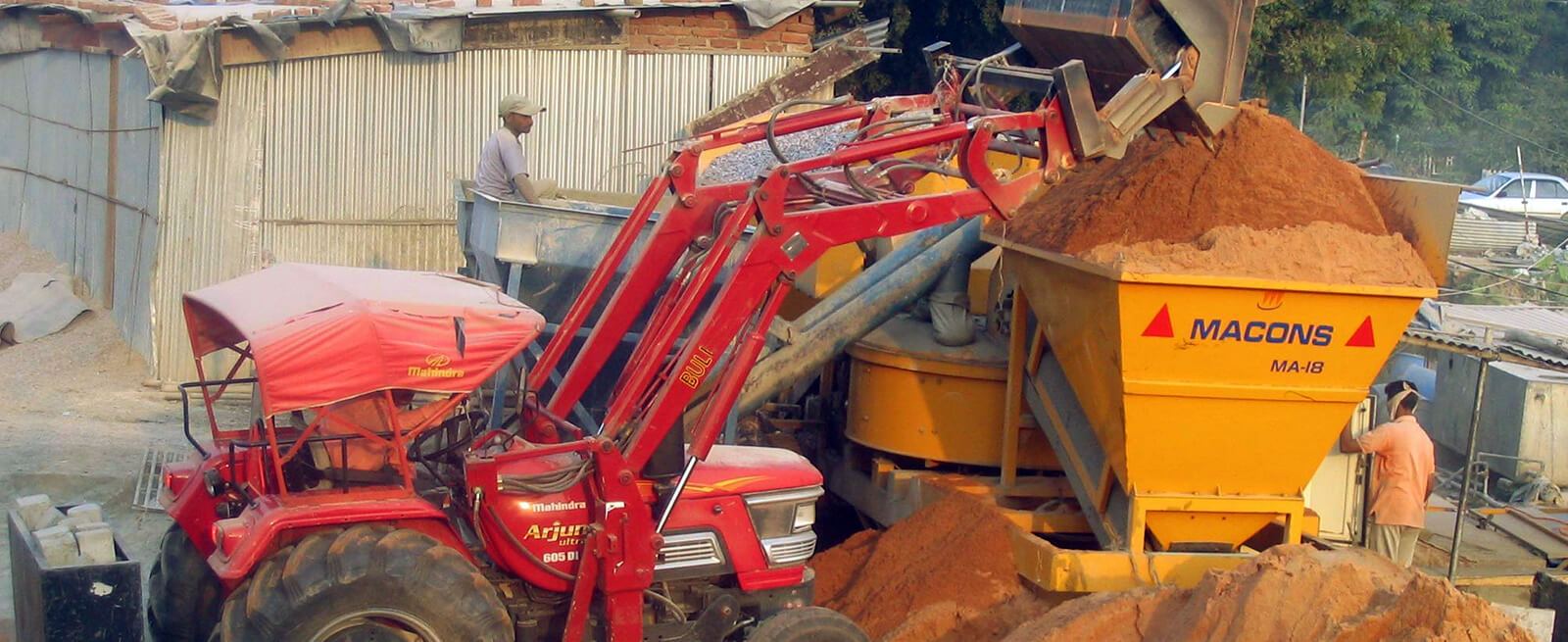

  • Batching plant handling bull front end loader in mahindra

  • Bull front end loader with booster bucket in JD handling cow dung

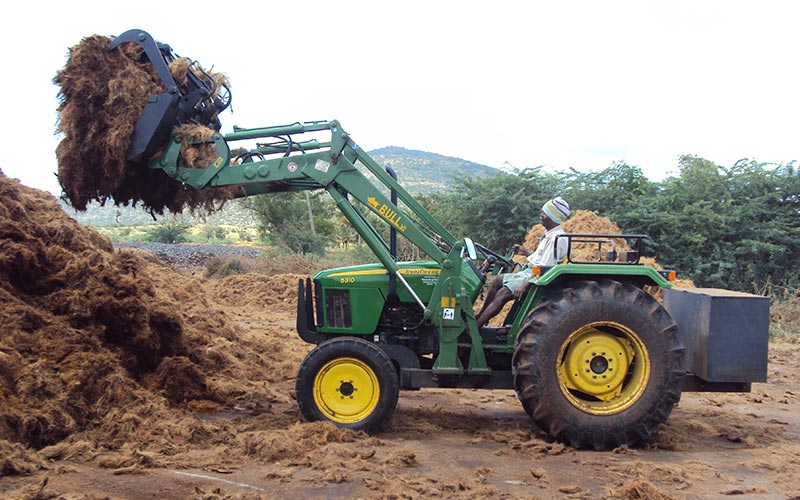

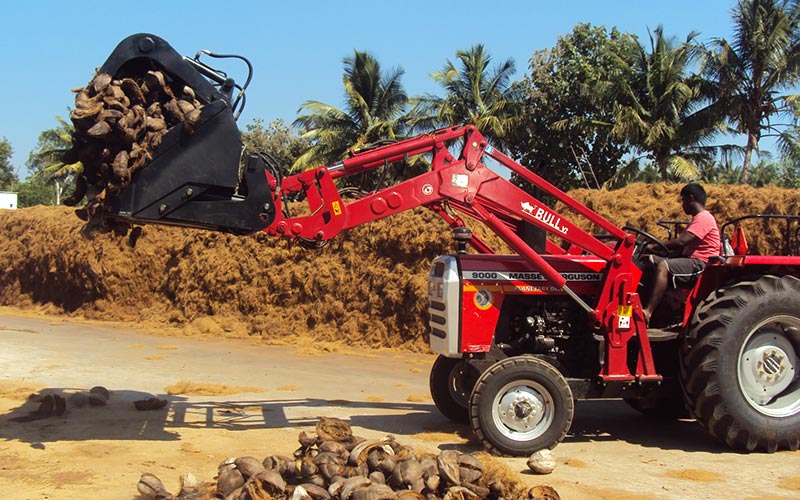

  • Bull front end loader with grabbing fork with booster bucket handling coir

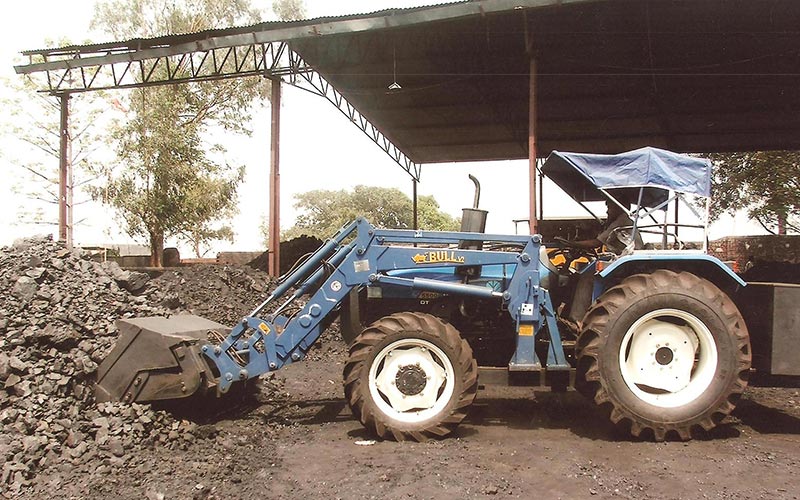

  • Coal handling with bull front end loader in new holand

  • Coir wire handling with grabbing fork (JD) -bull front end loader

  • Cotton handling mahindra grabbing fork with booster bucket in front end loader

  • Handling Fruit pulp handling (JD)

  • Heavy material handling in foundry - bull fornt end loader

  • Loader withn Bale grabber handling(NH)

  • Log handling with grabbing fork same deutz fahr tractor
