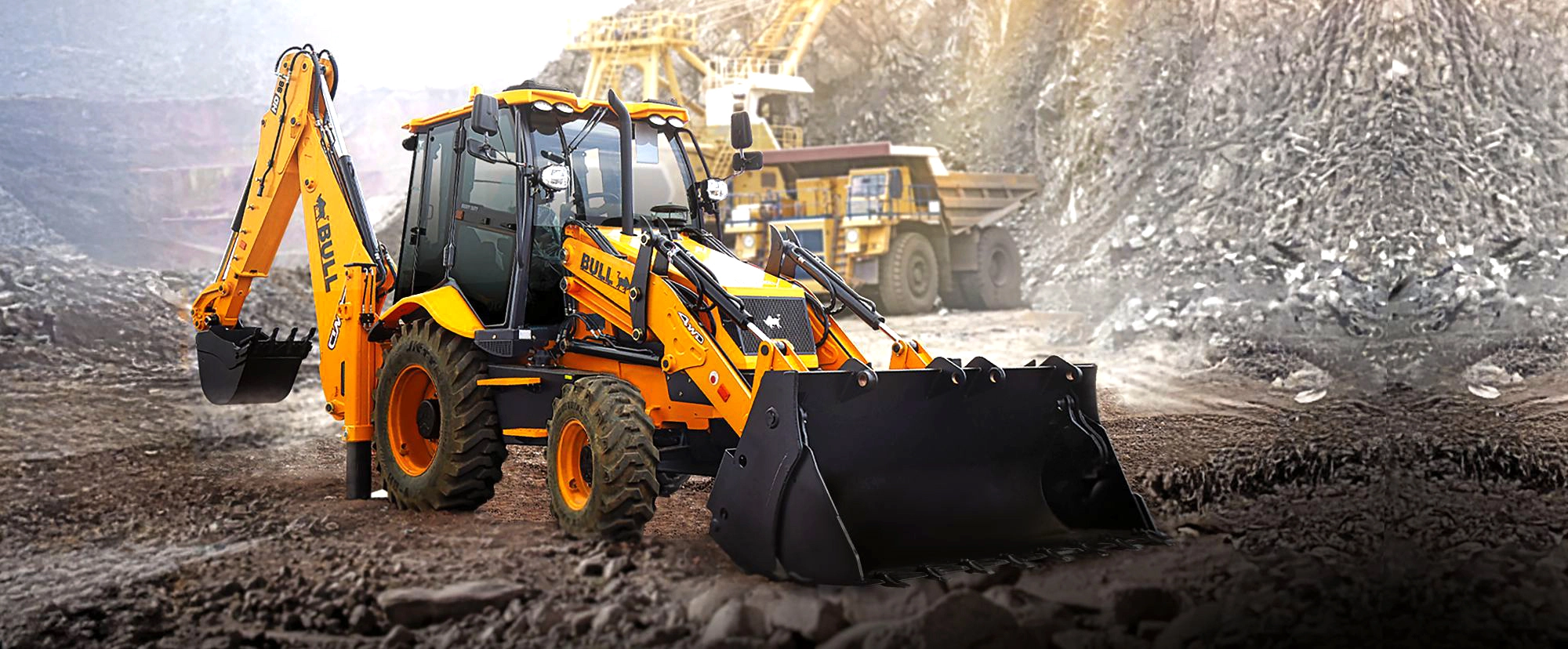

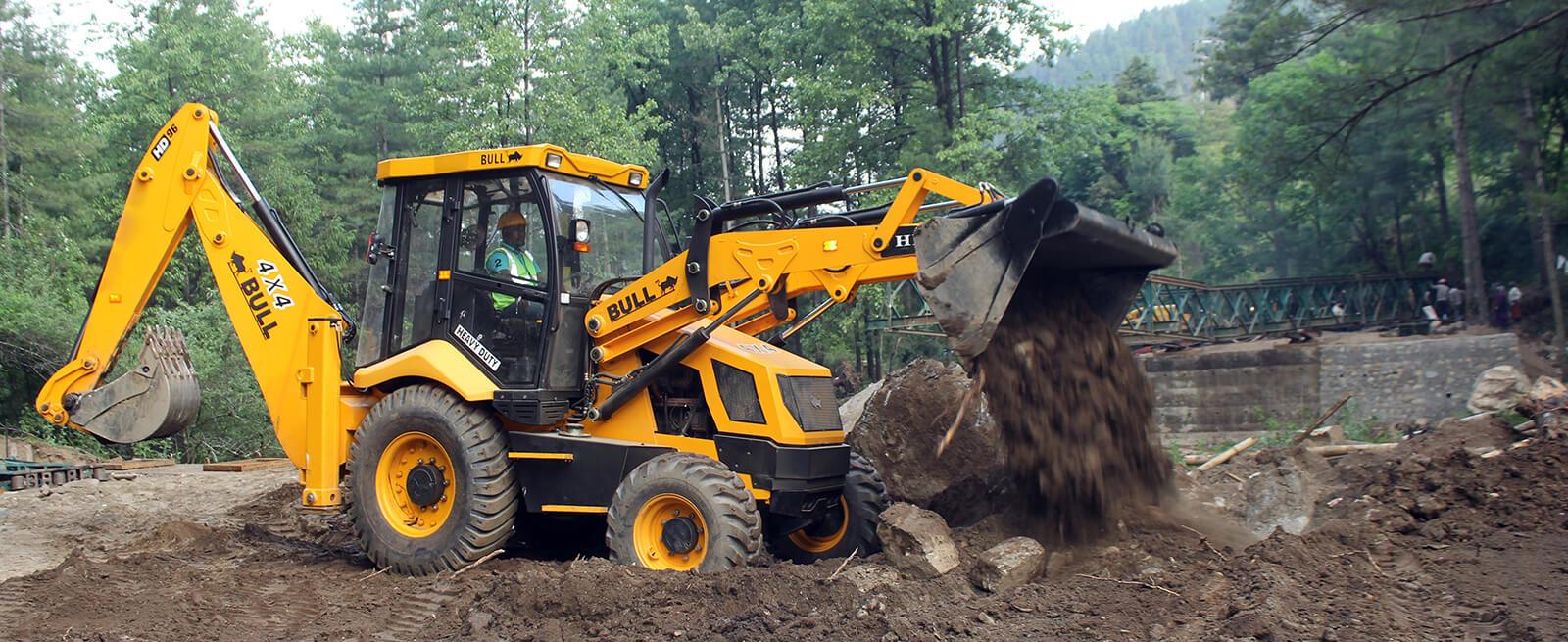

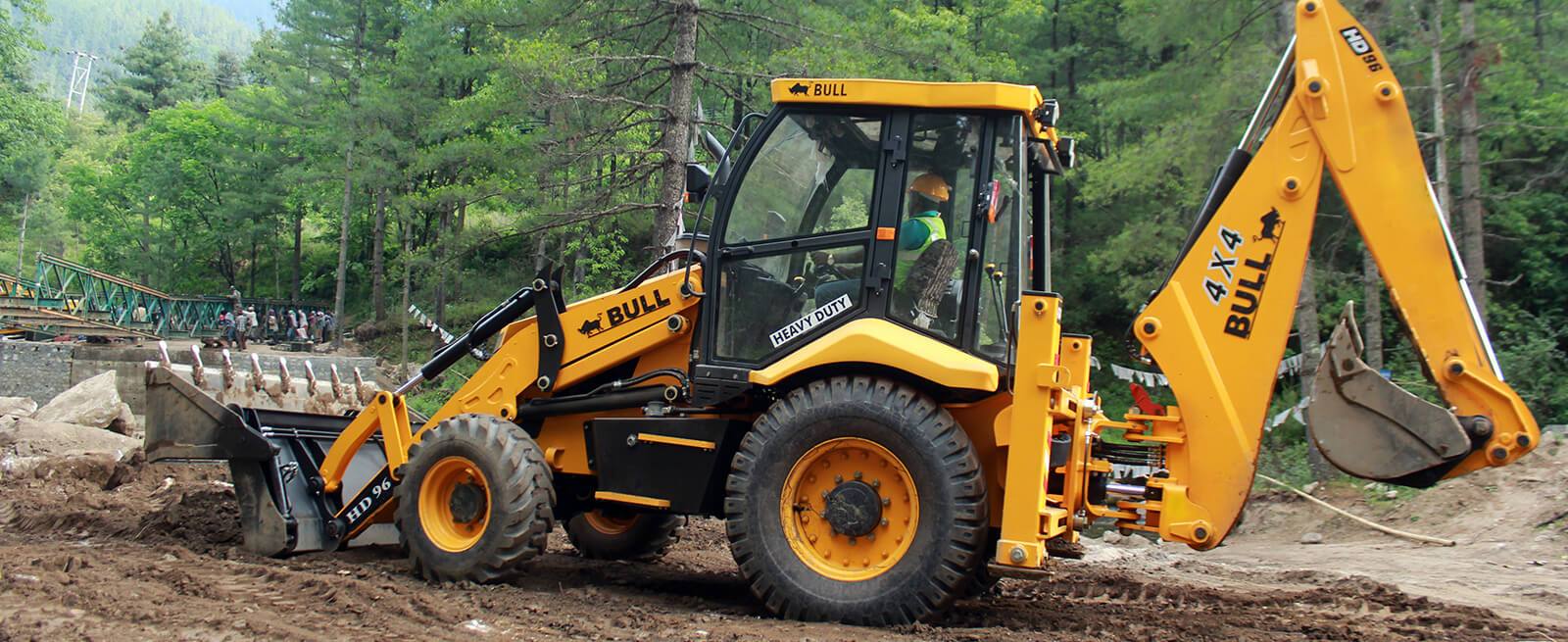

BULL

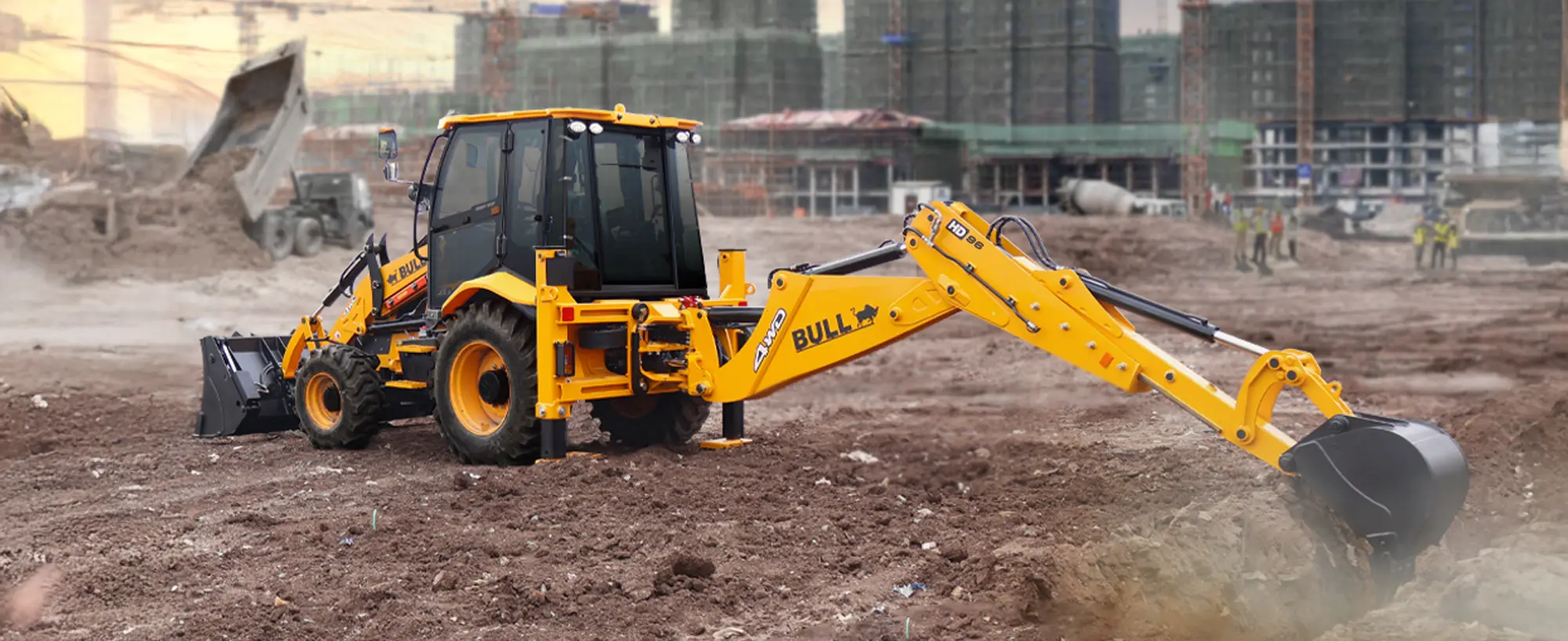

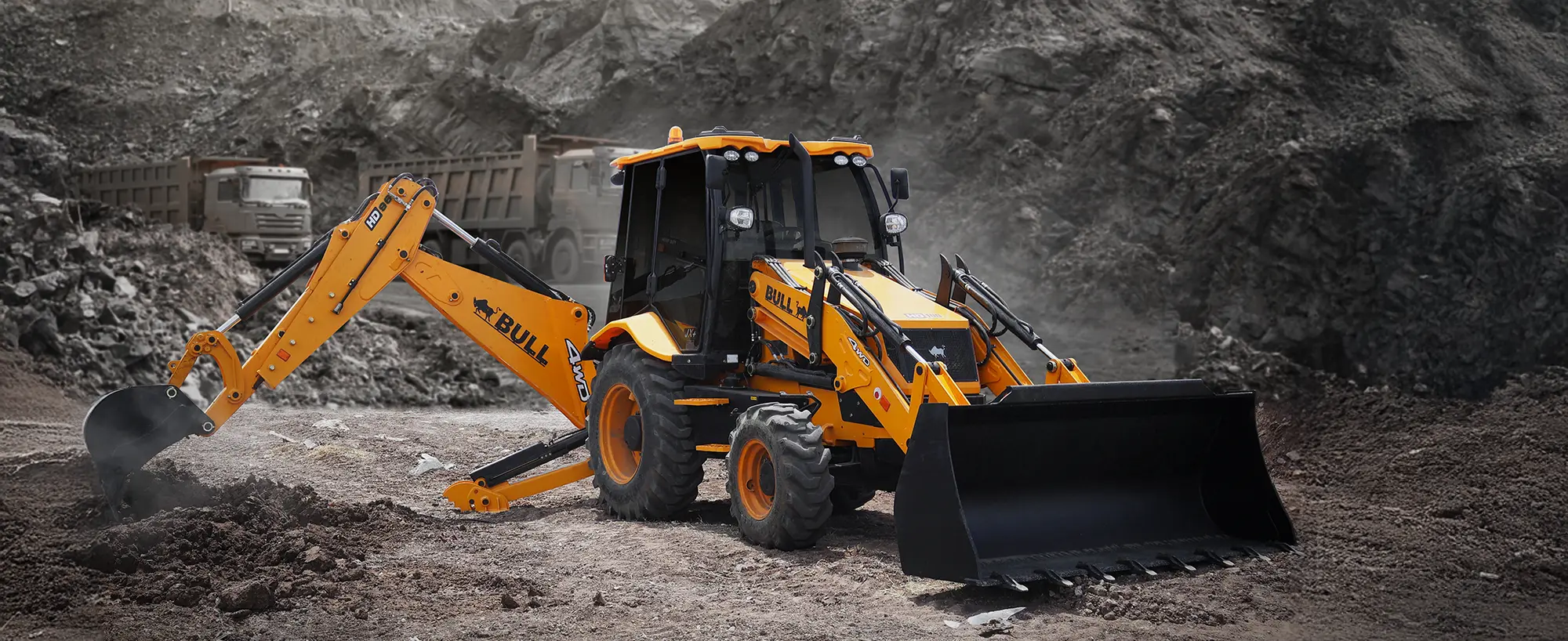

High performance machine with 96HP (70.6KW) engine and Carraro transmission.

catalog
HD 96 EURO II
catalog
HD 96 EURO III
video
Video
96-4wd

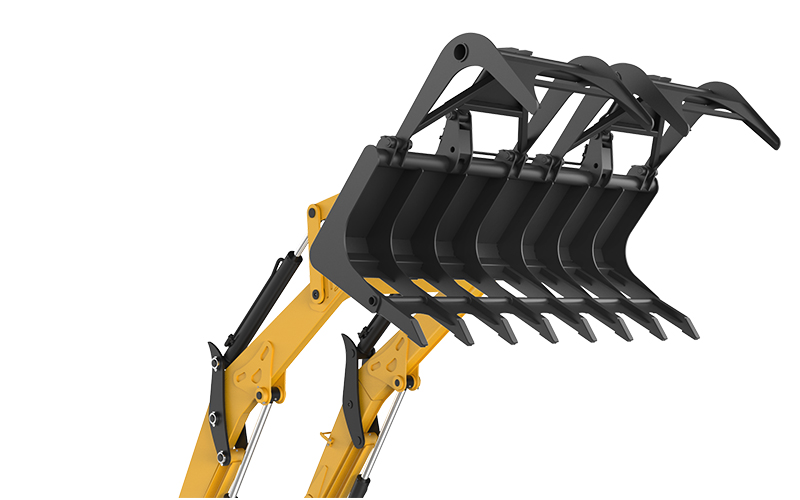

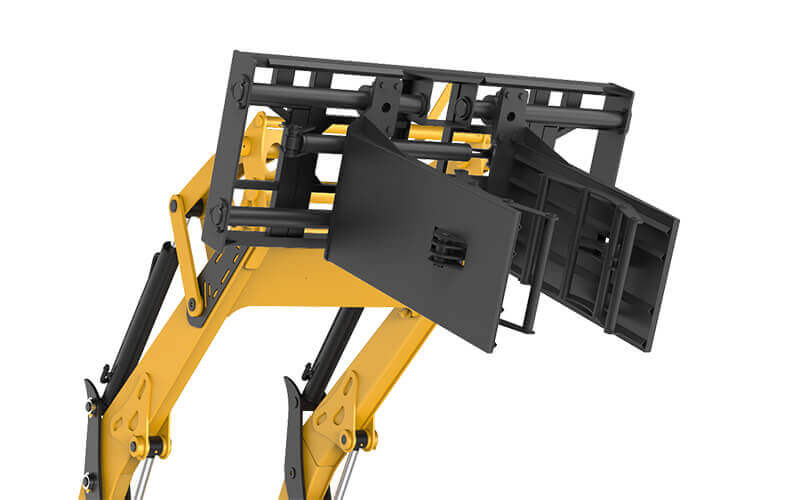

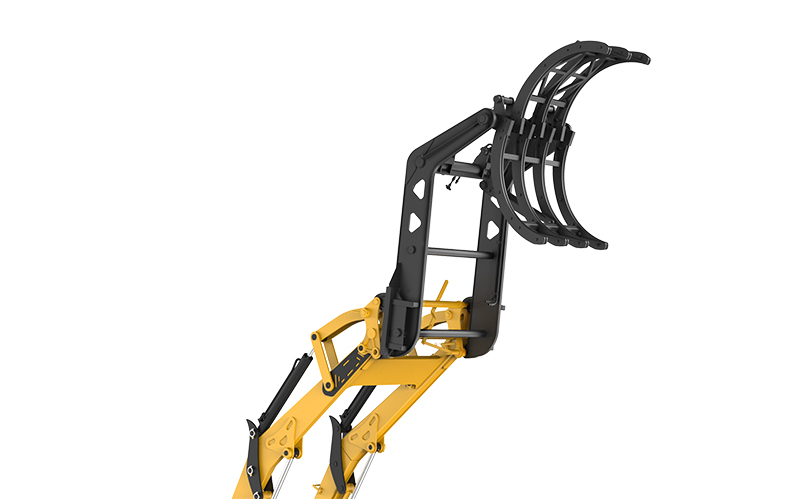

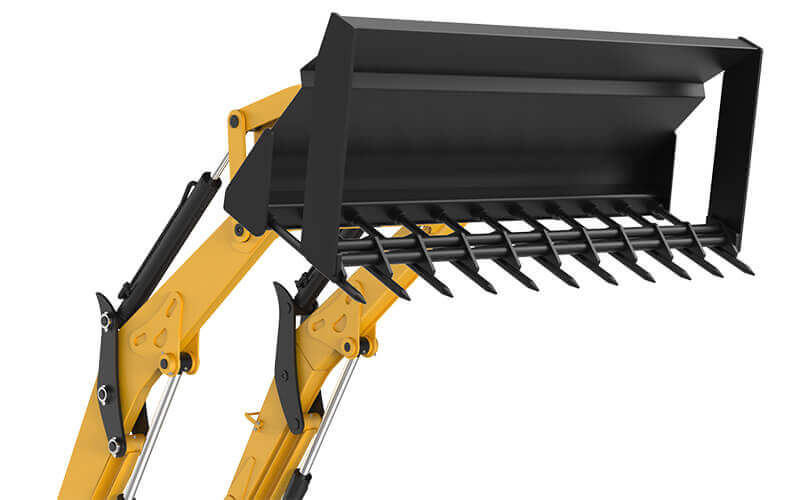

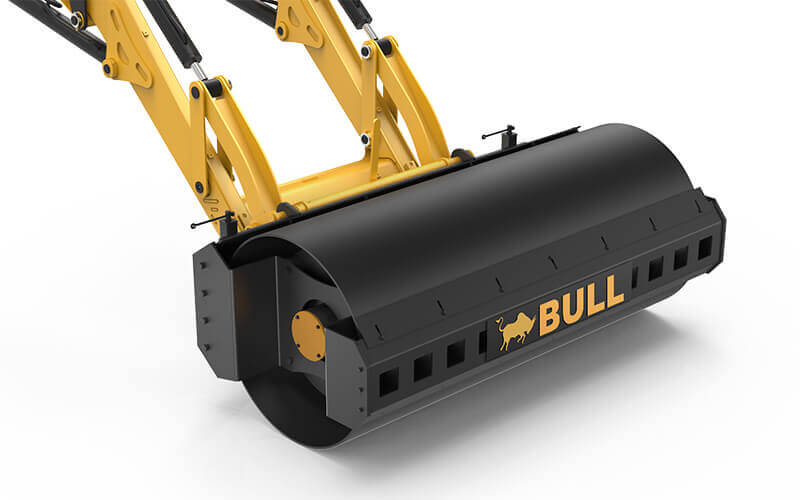

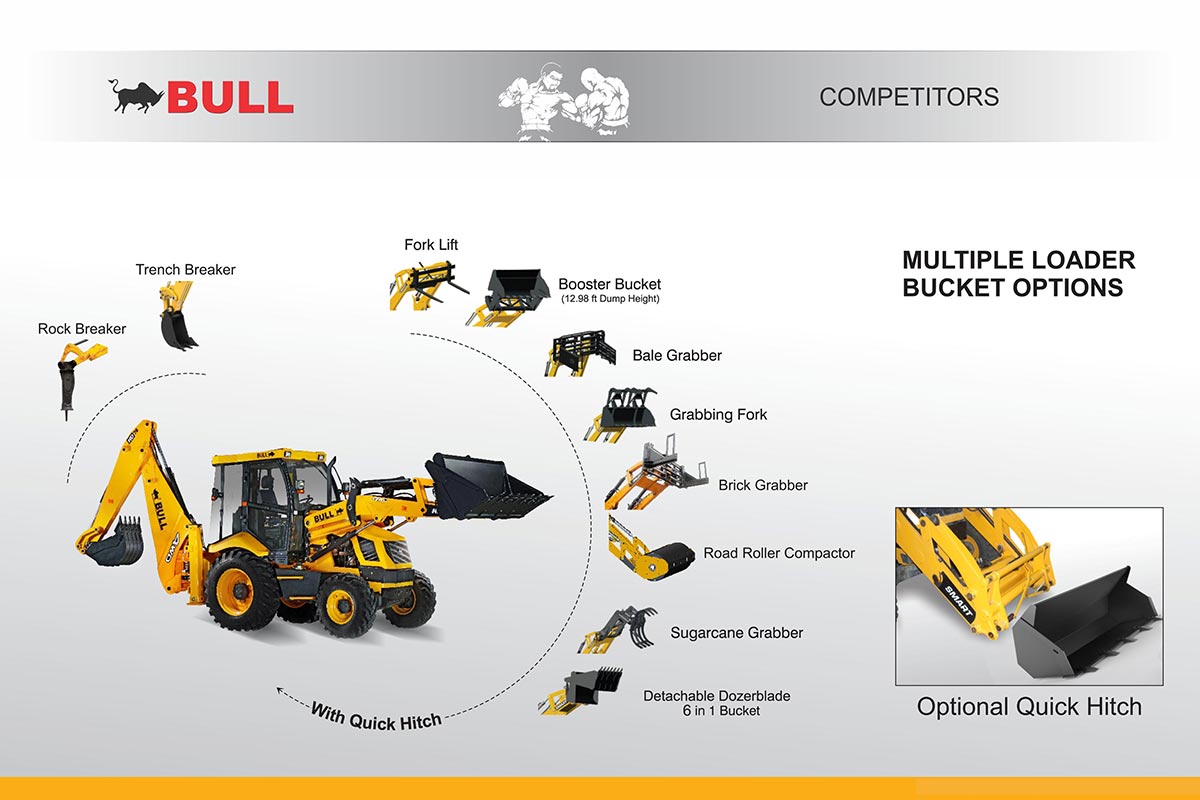

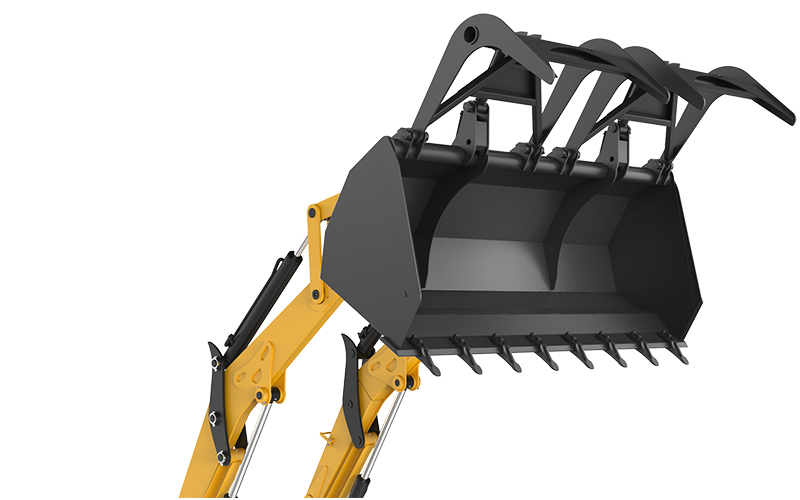

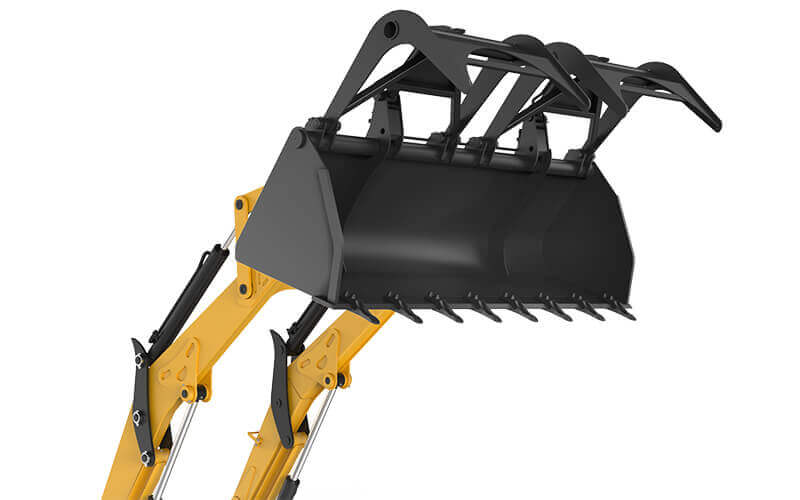

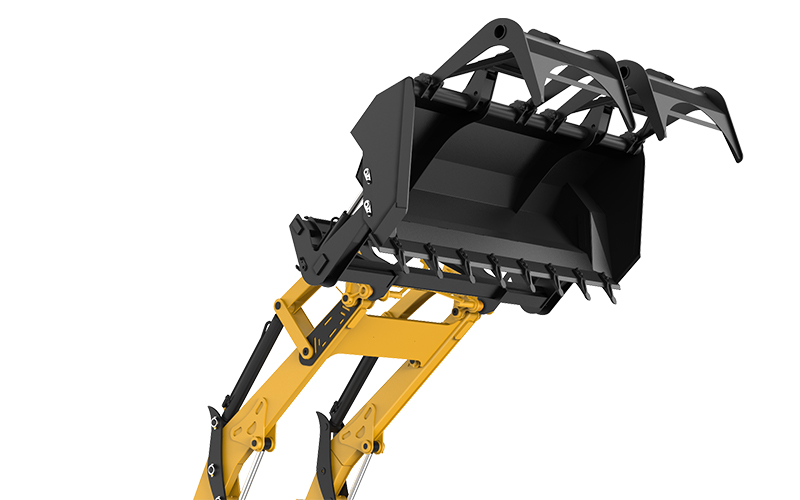

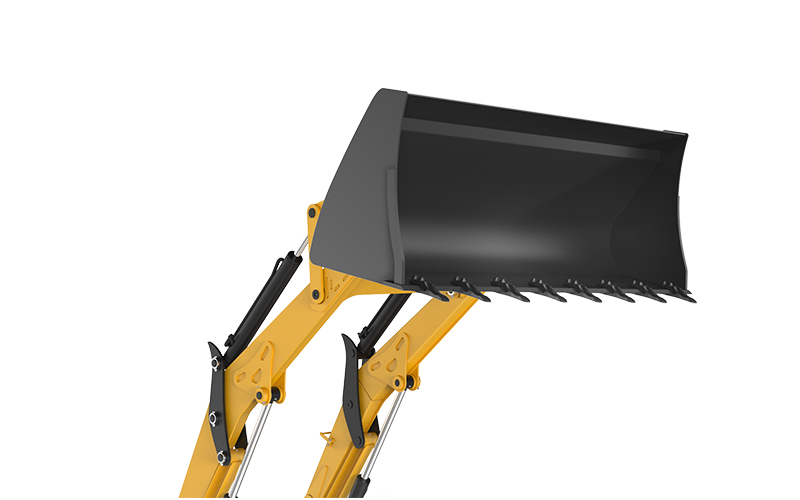

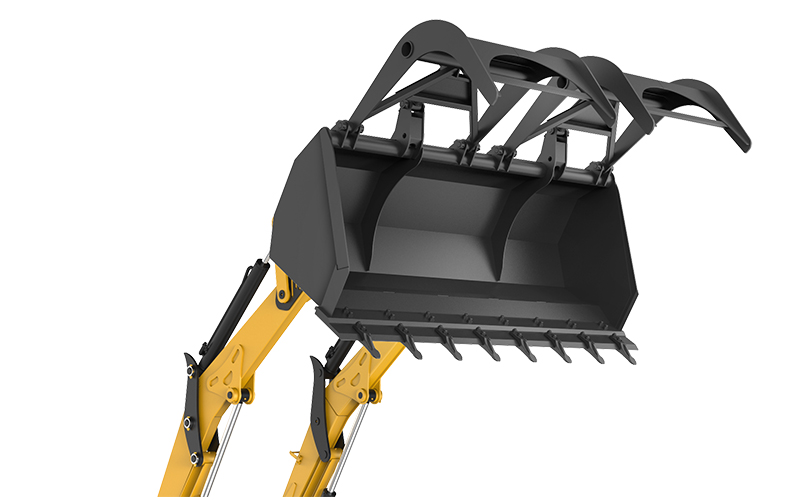

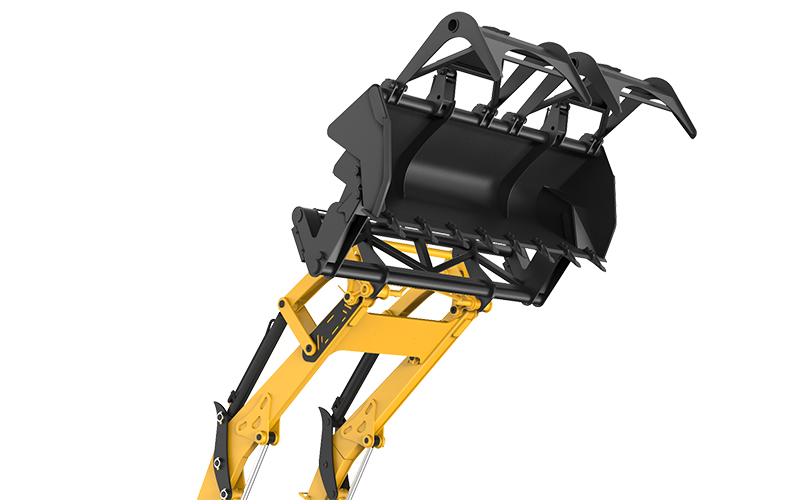

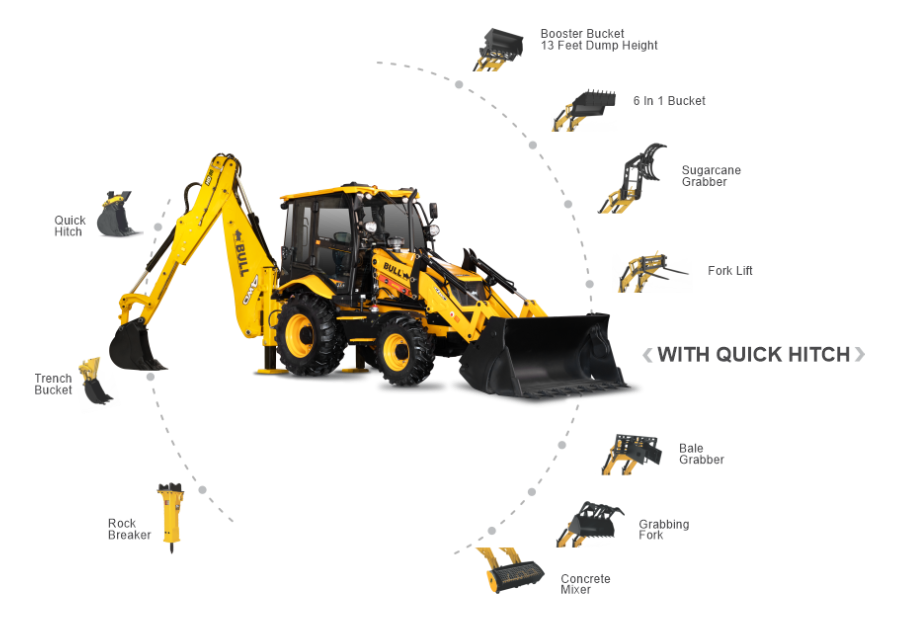

Bucket Options

Different types of application specific quick interchangeable loader bucket options.

Technical information

  • Dimensions
  • Engine
  • Transmission
  • Axles
  • Breaks
  • Steering
  • Electricals
  • Tyres
  • Turning Circle
  • Speed
  • Hydraulics
  • Weight
  • Service Capacities
  • CAB
  • Options

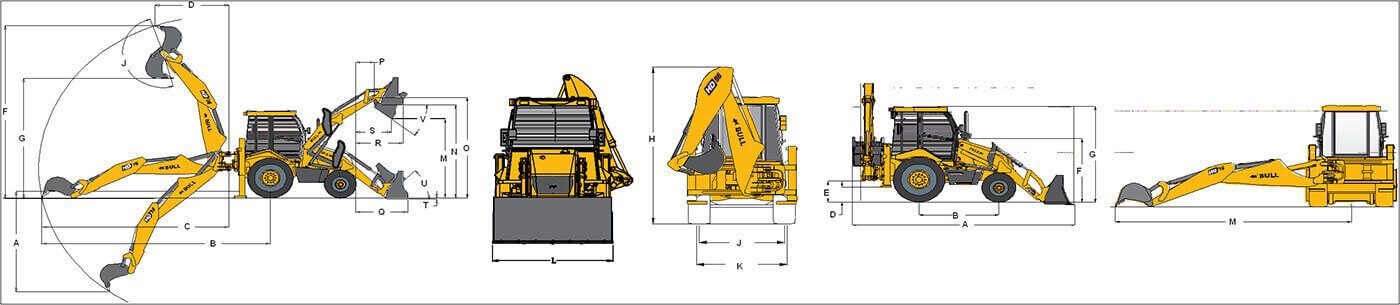

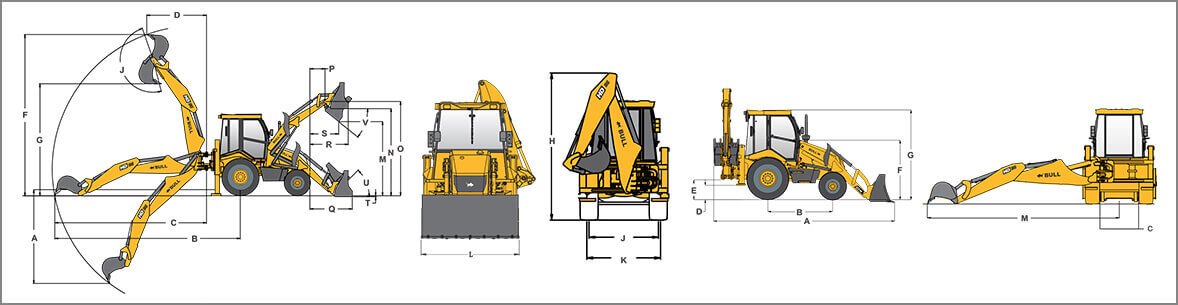

Dimensions

96-blueprint

Loader Performance

    Without Link Bracket
    meter ft -inch
  Standard 6 in 1 Bucket Capacity 1.1 cu.m
M Dump Height 2.93 m 9 ft- 8.5 in
N Load Over Height 3.39 m 11ft-1.4in
O Pin Height 3.61 m 11ft-10in
P Pin Forward Reach 0.42 m 1ft - 4.6in
Q Reach at Ground 1.47 m 4ft - 9.84in
R Reach at full height 1.28 m 4ft - 2.4in
S Reach at full Height bkt Dumped 0.89 m 2ft - 11in
T Below ground level DIG Depth 0.1 m 4 inch
U Roll back at Ground 49 degree
V Dump Angle 45 degree
  Bucket Break-out Force 8183 kgf
  Loader Arm Break-out Force 5251 kgf
  Pay Load 1800 kgf

Engine

Engine Kirloskar 4R 1040T1, BSII Diesel Engine.
No of cylinder: 4
Gross Power: 71.6 Kw (96HP) @ 2200 Rpm.
Torque 375 Nm@1400RPM.

Transmission

BULL HD 96HP comes with CARRARO synchroshuttle transmission that provides superb drive power in all conditions. it consists of a 4-speed fully synchromesh gearbox with integral torque convertor and electrically operated forward & reversing shuttle.

The pedals layout and conventional 4 pattern gear lever with transmission disconnect switch adds to the overall ease of operation.On the move gear changes are possbile.

Option: SMART HTS offers state of the art open loop Hydrostatic drive(Patent pending).

Axles

Rear: Drive axle rigidly mounted, incorporates Max-trac torque proportioning differential, driven by short propshaft from gear box.

Front: Steer axle, centrally pivoted with oscillation angle ±16°.

Breaks

Service: Hydraulically actuated, duel line, self adjusting, compensated oil immersed, multi-disc type on the rear axle, well protected from dirt, water etc., requiring no maintenance. Operation Through independent pedals linked together for normal use.

Two independently operatable foot pedals enable machine to maneuver in tight spaces.

Parking: Hand operated, oil immersed multi disc on the rear axle.

Steering

Full power, front wheel hydraulic power steering with manual capability in the event of engine or hydraullic power failure.

Hydraulic supply from pump via priority valve. Working pressure 1958 psi (135 bar)

Electricals

180 Ampere-hour 12 volts battery system with alternator and full road lighting.

Tyres

Front: 2WD: 9.00X16 - I6PR, 4WD: 12.5/80X18 -12PR

Rear: 2WD&4WD :16.9X28 -12PR(STD INDUSTRIAL TYRE) : 14.00-25-20PR(HEAVY DUTY TYRE)

Turning Circle

Inner wheels bracked

A* Outside loader bucket 8.8 m

B Outside Wheels 6.3 m

Inner wheels not bracked

A* Outside loader bucket 11.6 m

B Outside Wheels 8.9 m

Speed

Gear Forward Km/hr Reverse Km/hr
1st 5.9 5:9
2nd 9.5 9:3
3rd 20.3 20.3 (but not recommend for safety)
4th 41 41 (but not recommend for safety)

Hydraulics

SMART technology hydraulics : 3335 PSI (230bar).

Pump flow : 134 lpm at 2200rpm.

Weight

Shipping: 7910 kgs

Service Capacities

Hydraulic system 105 Ltr
Fuel Tank 130 Ltr
Engine Coolant 15 Ltr
Engine Oil 10 Ltr
Transmission 19 Ltr
Rear axle 17 ltr

CAB

  • Front Curved cab glasses provide excellent visibility.
  • Excellent operator safety. Conforms to ROPS and FOPS standards .
  • Plenty of legroom minimises fatigue and allows the operator to work un-interrupted for long hours.
  • A fully adjustable seat combined with ergonomically positioned controls and soft touch steering wheel.
  • Cab provides easy 'walk through' two door access. Other features include seat belt, large convex rear view mirror, interior light, front screen wiper, front and rear horn, hazard warning system, tool box and helper seat.
  • Instrumentation panel is positioned on the right hand side includes engine speed, engine hours, fuel level and water temperature.
  • Audible and visual fault warning system for alternator charge, coolant temperature, engine oil pressure, blocked air filter, transmission oil temperature and hand-brake on.

Options

Excavator Buckets

Capacities

- 0.23 cu.m (standard)

Options

- 0.1 cu.m

- 0.17 cu.m

- 0.21 cu.m

Ditch Cleaning Bucket

Taper Ditching Bucket

Square Hole Bucket

Rock Breaker

Ripper Tooth

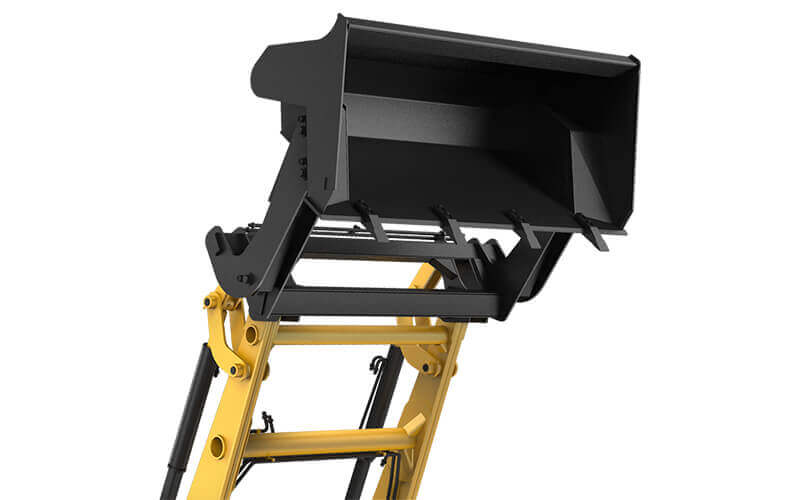

Loader booster bucket with 12.98 ft dump height

6 in 1 Bucket

4 wheel drive
