Ultra Loader

The Bull ultra-loader can handle 600-800kgs with reach of 15 feet materials in one go. Ideal for light weight.

catalog
Catalog
video
Video

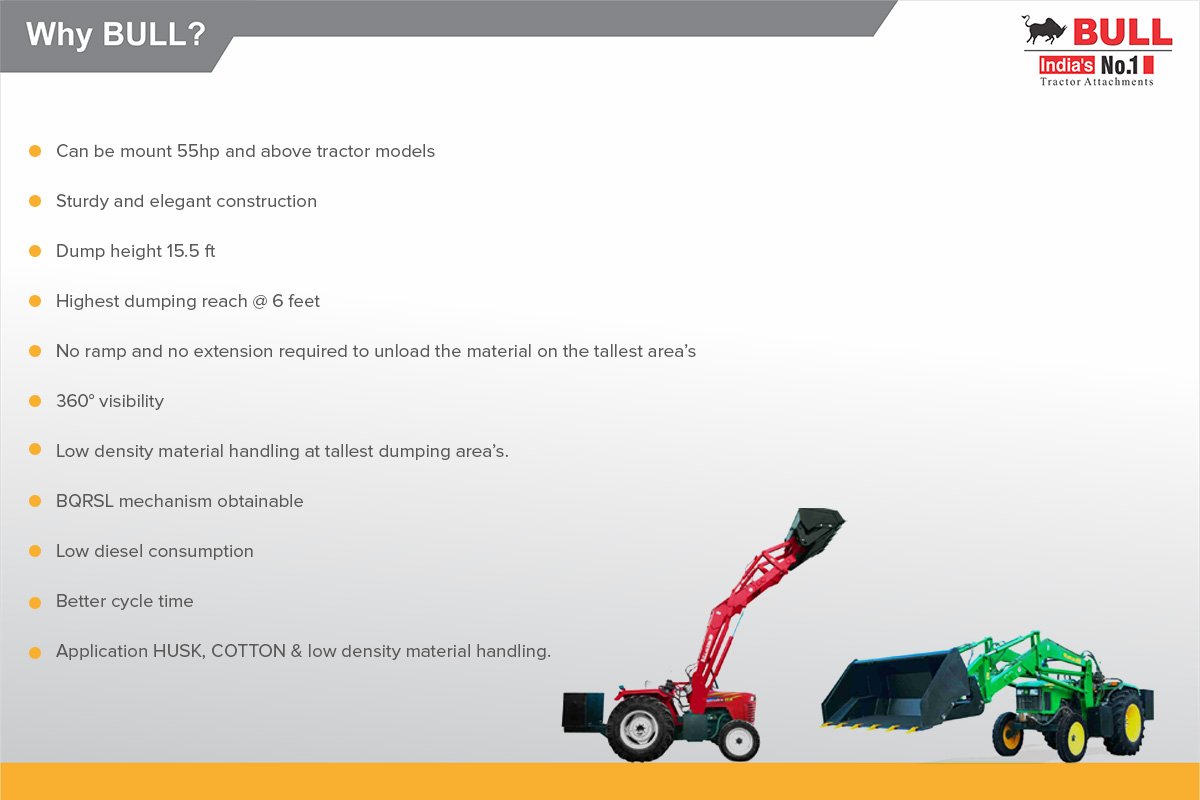

Salient Features

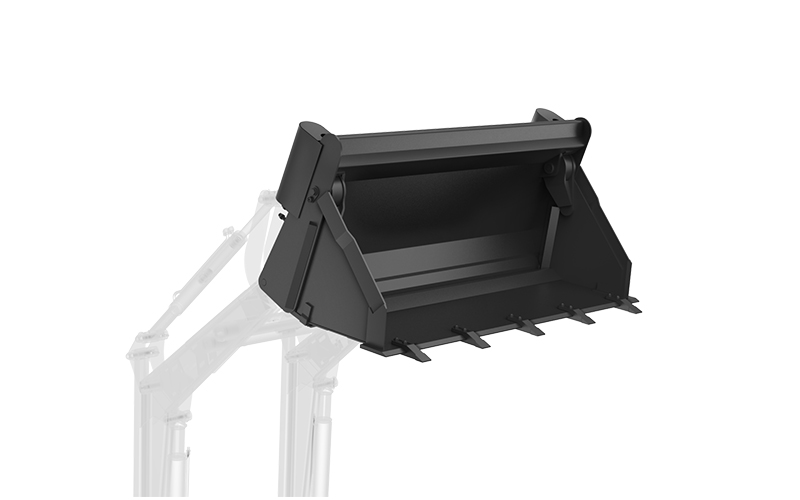

Bucket Options

Different types of application specific quick interchangeable loader bucket options.

Technical information

  • Dimensions
  • Specification

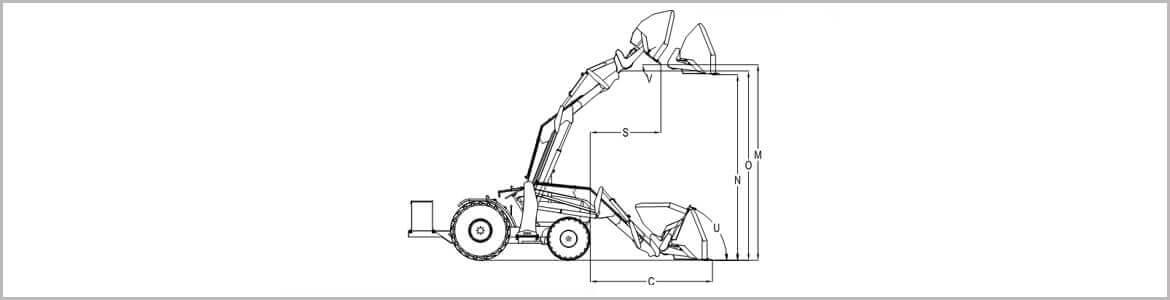

Dimensions

ultra-loader-blueprint

Specification

    1.5 Cum High Volume Hdhv Bale Standard
    Booster Bucket Bucket Grabber Bucket
    mm(feet_inches) mm(feet_inches) mm(feet_inches) mm(feet_inches)
O Loader Hinge Pin Height 4560 (15') 4560 (15') 4560 (15') 4560 (15')
N Load Over Height 5076 (16.7') 4860 (15.9') 4400 (14.4') 4400 (14.4')
M Dump Height @ 45° 4712 (15.4') 4590 (15.5') 3419 (11.2') 3768 (12.4')
S Reach At Full Height @ 45° Dumped 1794.5 (5.88') 1798 (5.89') 1838 (6') 1347.5 (4.4')
C Reach At Ground 3148 (10.35') 2953 (9.6') 3177 (10.4') 2700 (8.88')
V Dump Angle 48° 48° 48° 48°
U Roll Back At Ground 60° 56° 45° 68.3°

Videos

Images

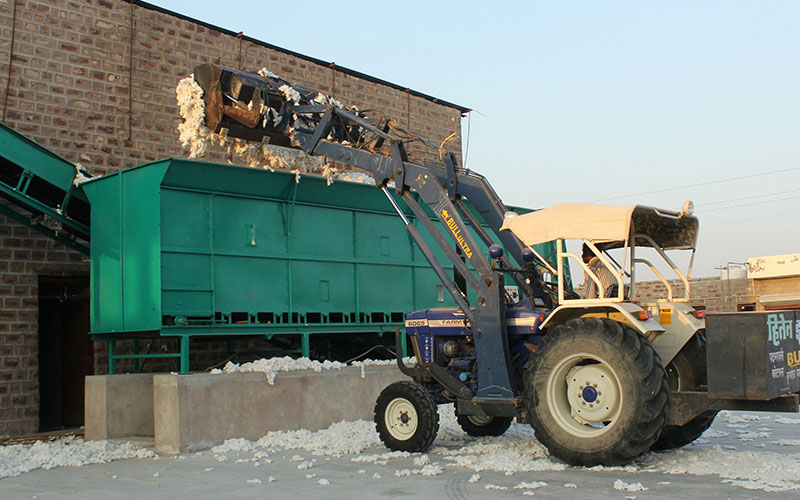

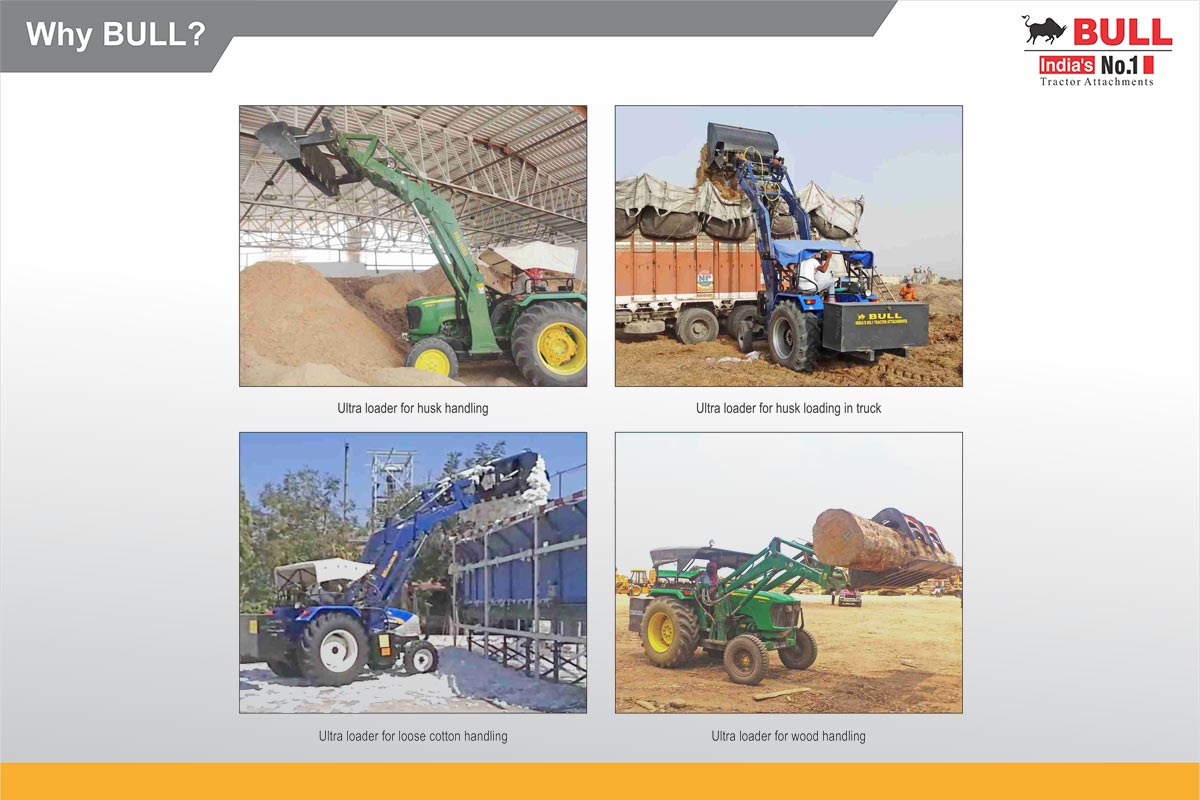

  • Handling and loading cotton bull ultra loader with grabbing fork with booster bucket farmtrack

  • Handling and loading cotton bull ultra loader with grabbing fork with booster bucket farmtrack

  • Handling cotton bull ultra loader with grabbing fork with booster bucket in new holand 1

  • Handling cotton bull ultra loader with grabbing fork with booster bucket in new holand

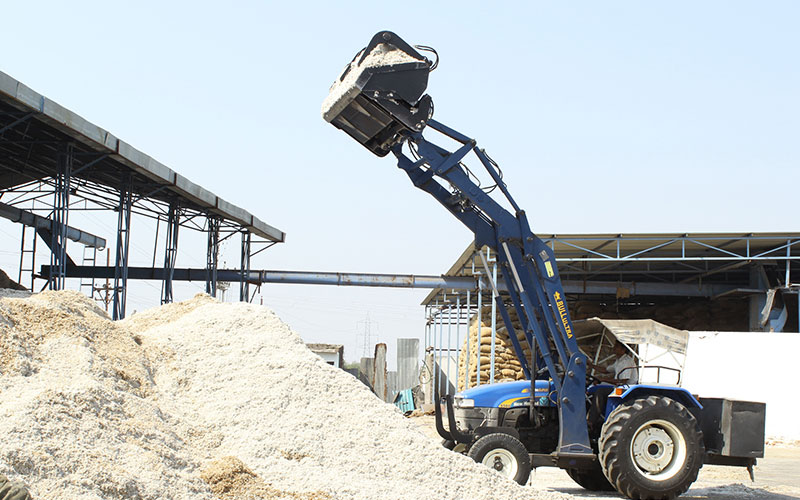

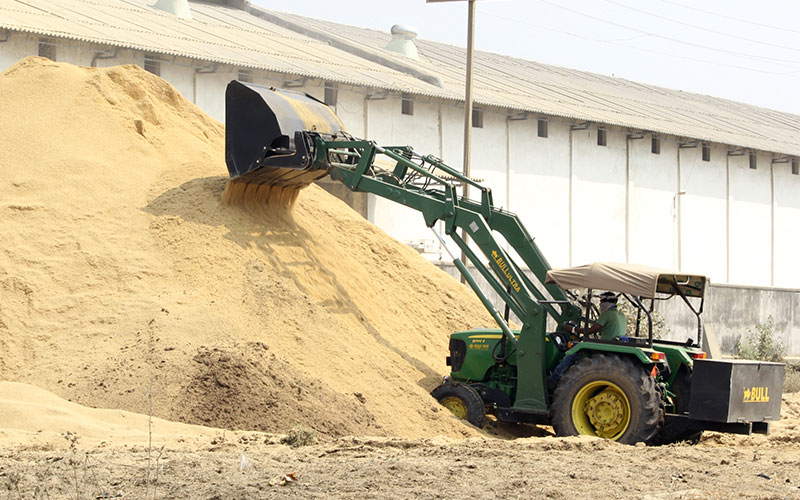

  • Handling husk bull ultra loader with high dump high volume bucket in JD 1

  • Handling husk bull ultra loader with high dump high volume bucket in JD

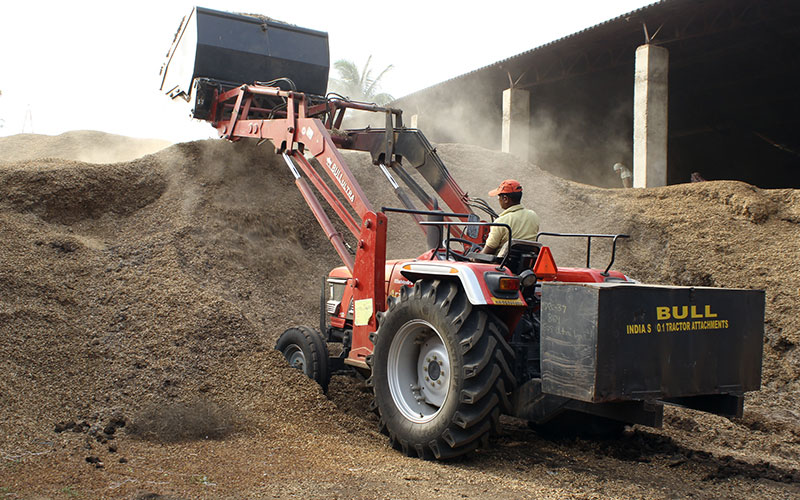

  • Handling husk bull ultra loader with high dump high volume bucket in mahindra

  • Handling husk bull ultra loader with high dump high volume bucket in mahindra1

  • Handling loose paper bull ultra loader with high dump high volume bucket in mahindra 1

  • Handling loose paper bull ultra loader with high dump high volume bucket in mahindra
