Salient Features
Salient Features
Highest bucket breakout force in its class
Heavy weight champion
10 % More traction
Comfort Driving
Tallest Dumping Backhoe loader

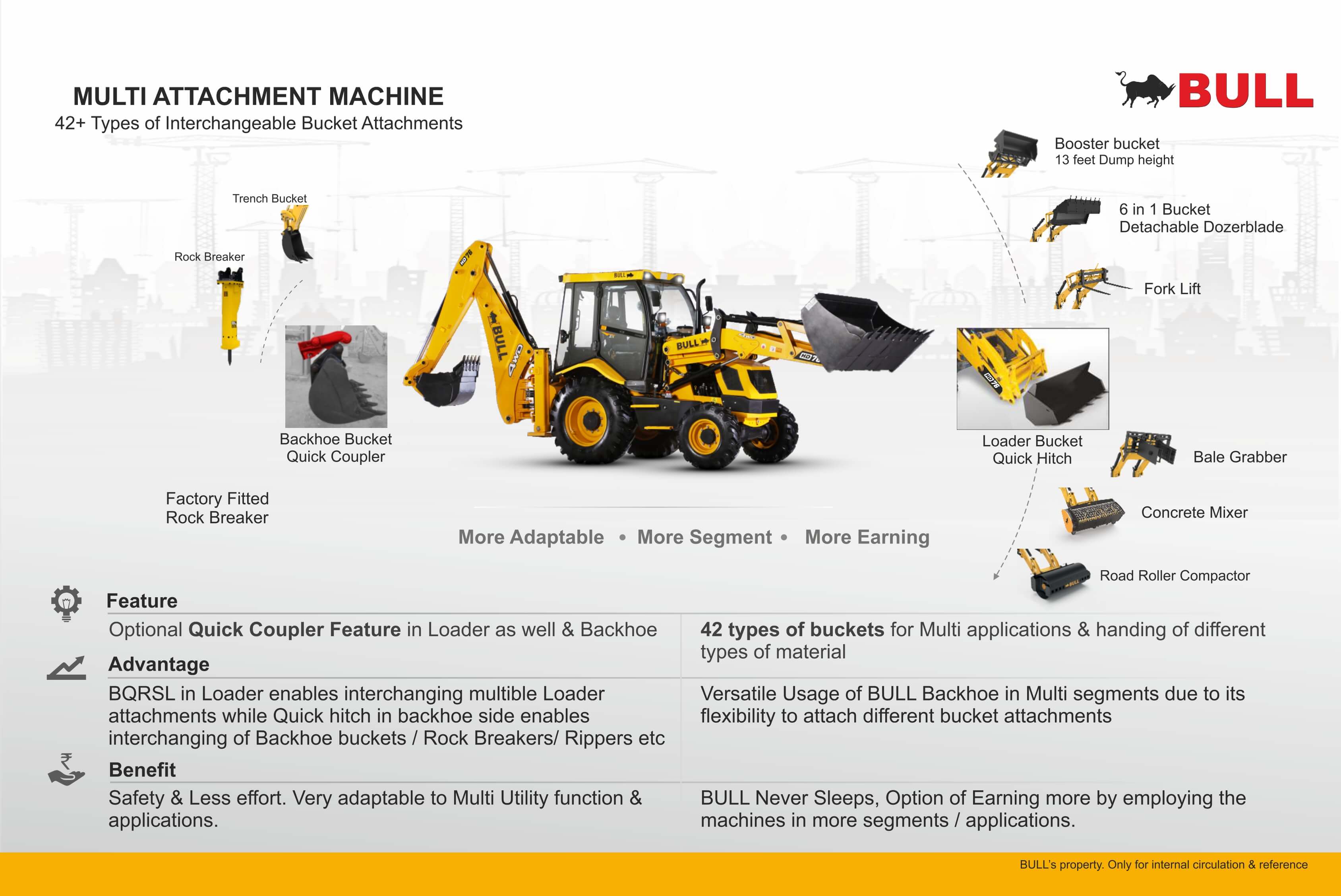

Multi loaders bucket options
Most Fuel efficient Backhoe
Scratch resistant painting
World class cabin

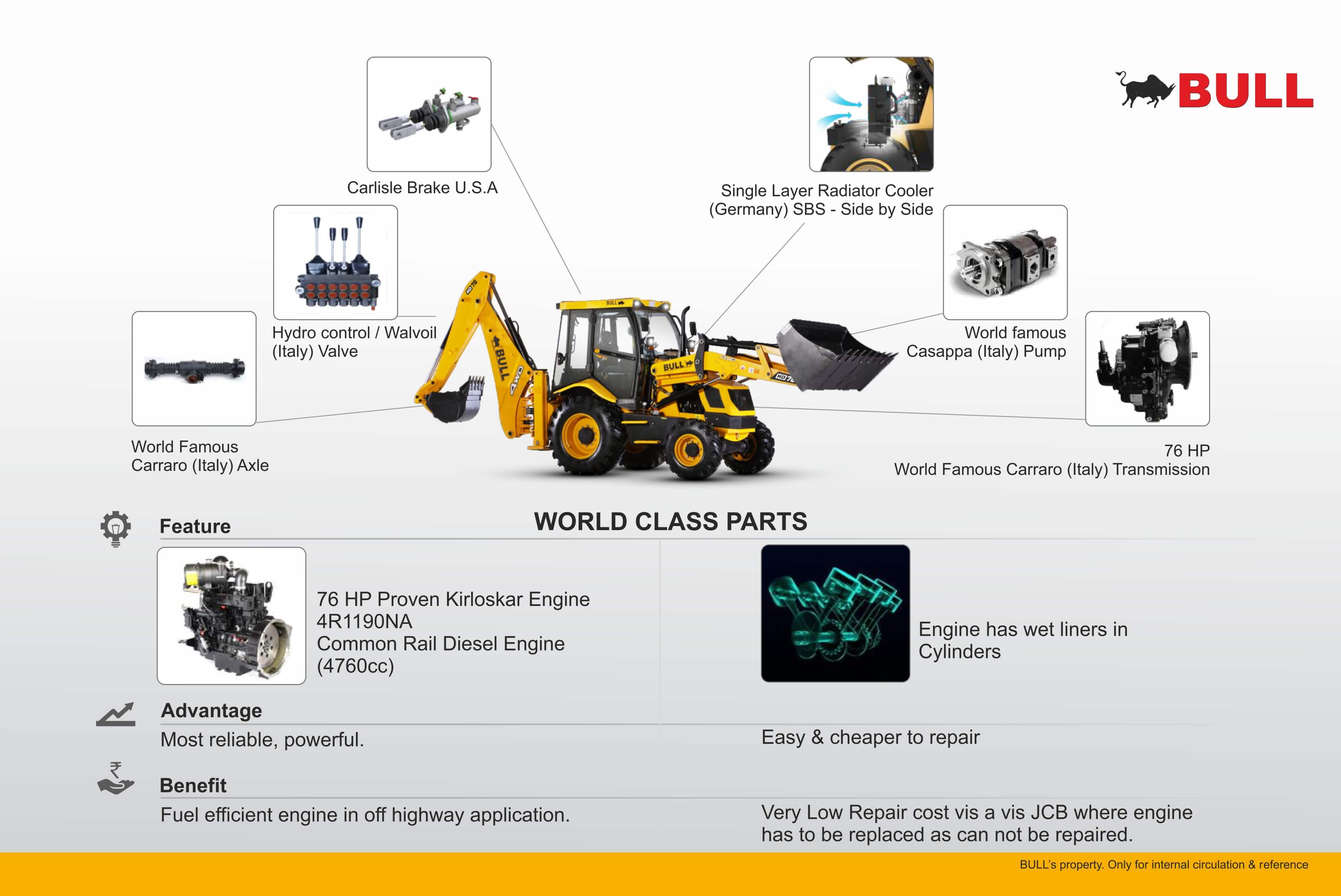

World's best parts

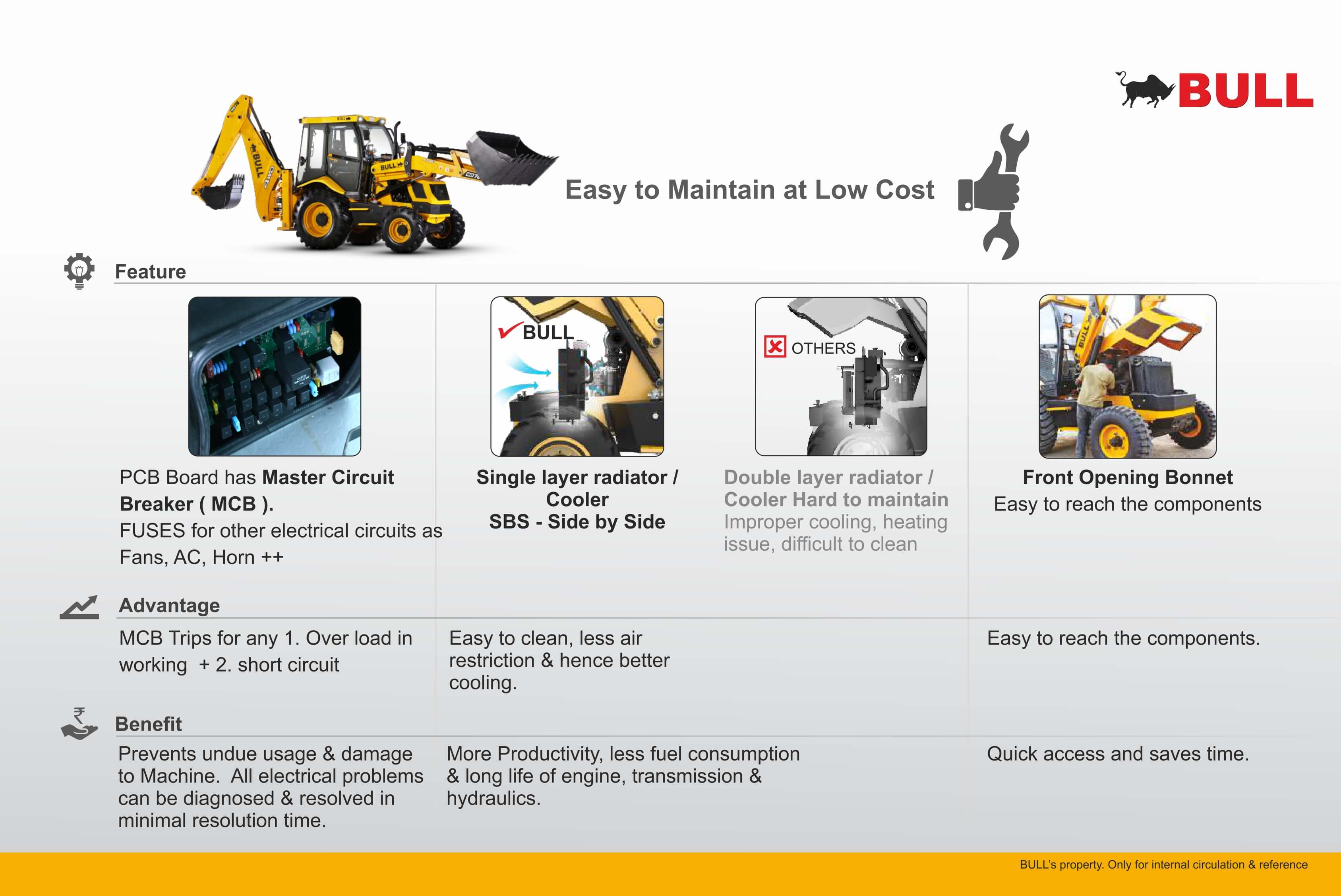

Easy low cost maintenance

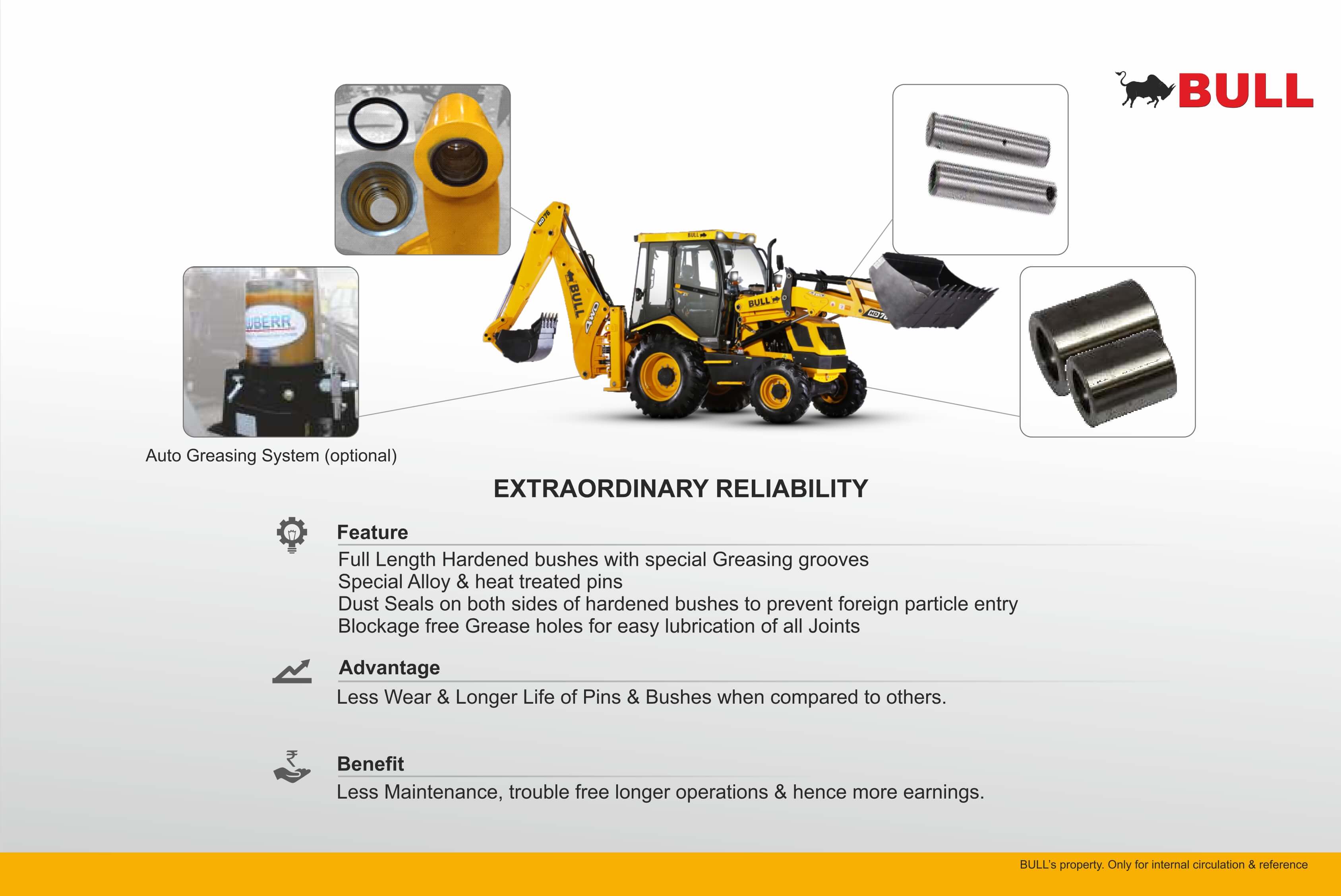

Extraordinary reliability

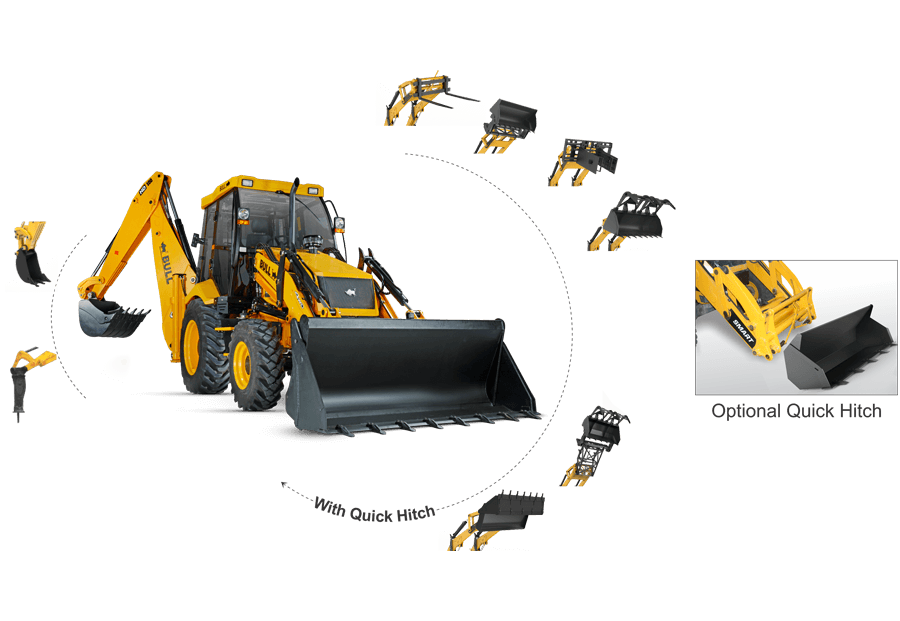

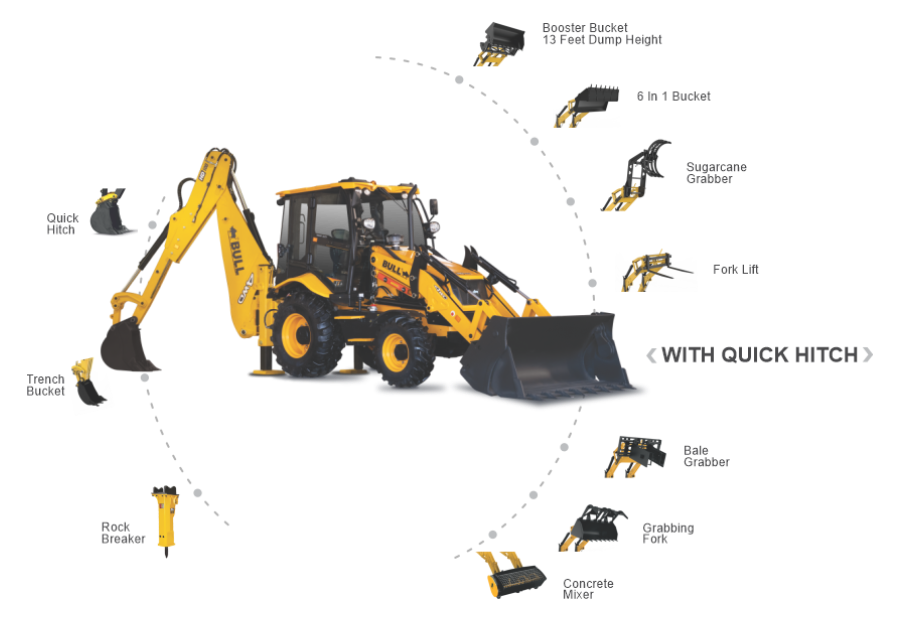

Bucket Options
Different types of application specific quick interchangeable loader bucket options.
6 in 1 Open
Bucket
14 Feet
Ext Bale
14 ft HD HV
Bucket
Bagasse Dozer
Backhoe
Bucket
Trench Bucket

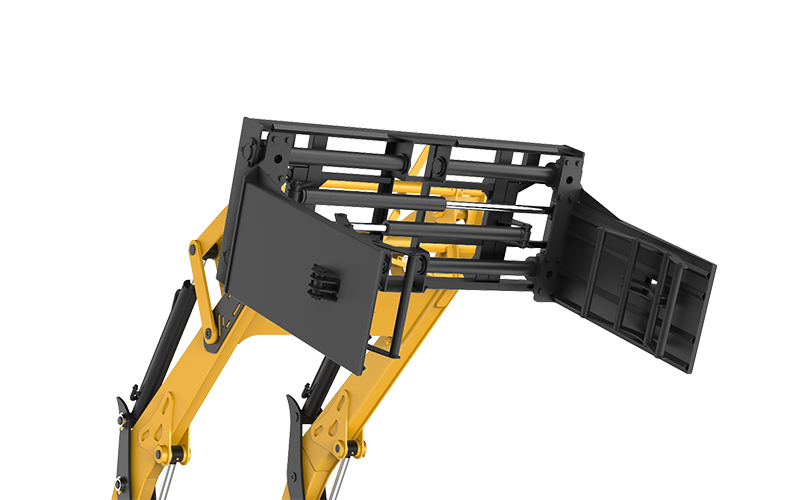

Balegrabber 1
Bucket
Balegrabber
Bucket
Booster
Bucket
Compactroller
Bucket

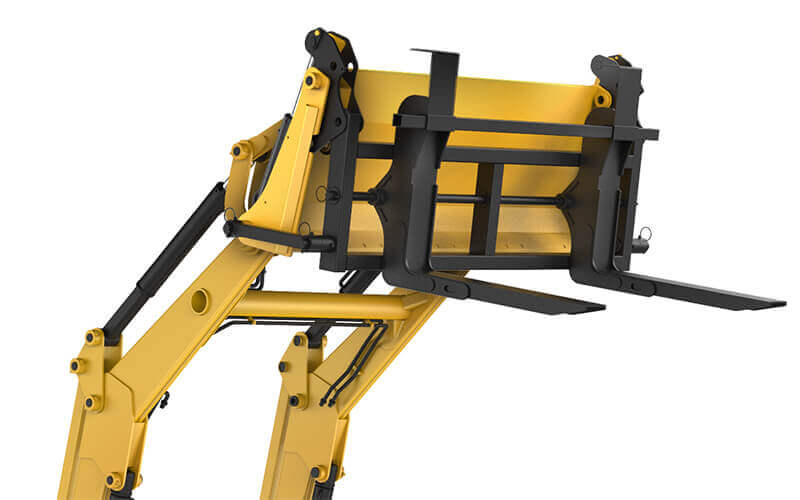

Fork Lift
Grabbing Fork
Grabbing Fork
Booster Bucket
HDHV
High Volume
Grabbing Bucket
High Volume
Grabbing Coir
Log Fork
Standard Bucket
Stone Bucket
Sugacane
Loader CE
Technical information
- Dimensions
- Specification
- Engine
- Transmission
- Axles
- Breaks
- Steering
- Drive
- Electricals
- Tyres
- Turning Circle
- Speed
- Hydraulics
- Weight
- Service Capacities
- Options

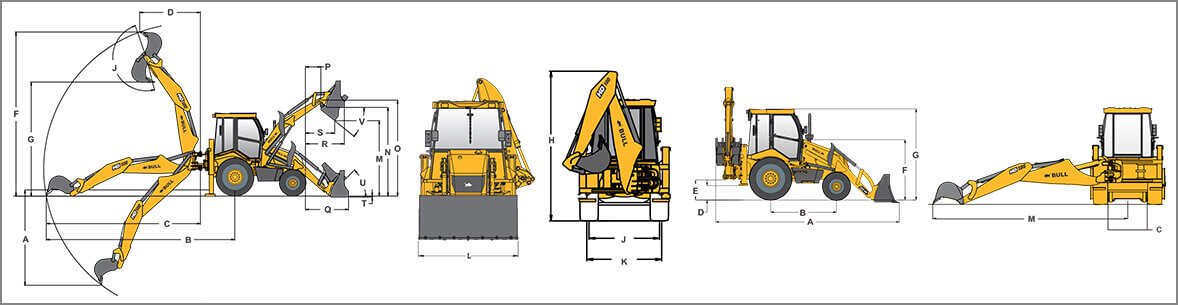

Dimensions
Excavator Performance
| Standard | Extension (Option) | ||||
| Meter | Meter | ||||
| Standard Bucket Capacity | 0.27 cu.m (standard) | ||||
| A | Maximum DIG Depth | 4.60m | 5.59m | ||
| B | Reach Ground Level to Rear wheel center | 6.80m | 7.91m | ||
| C | Reach Ground Level to slew center | 5.50m | 6.60m | ||
| D | Reach at full Height to slew center | 2.85m | 3.56m | ||
| F | Maximum working Height | 5.92m | 6.77m | ||
| G | Maximum Load over Height | 4.14m | 5.02m | ||
| H | Bucket Rotation - Power | 1880 degree | |||
| Bucket Tear out Force | 6851 kgf | ||||
| Dipper Tear our Force | 3316 kgf | ||||
| Lift capacity to bucket Pivot at full Reach (without Bucket) | 1400 kgs | ||||
Loader Performance
| Without Link Bracket | |||||
| Meter | |||||
| Standard Bucket Capacity | 1.1 cu.m G.P Showel | ||||
| I | Dump Height | 2.96 m | |||
| J | Load Over Height | 3.39 m | |||
| K | Pin Height | 3.61 m | |||
| L | Pin Forward Reach | 0.42 m | |||
| M | Reach at Ground | 1.47 m | |||
| N | Reach at full height | 1.28 m | |||
| O | Reach at full Height bkt Dumped | 0.89 m | |||
| P | Below ground level DIG Depth | 0.1 m | |||
| Q | Roll back at Ground | 490 degree | |||
| R | Dump Angle | 450 degree | |||
| Bucket Break-out Force | 8793 kgf | ||||
| Loader Arm Break-out Force | 5642 kgf | ||||
| Pay Load | 2000 kgf | ||||
Specification
| Description | mm(Ft-inch) | |
| O | Loader Hinge Pin Height | 3610 (11' - 10") |
| M | Bottom Opening Dump Height | 2960 (9' - 8") |
| C | Reach at Ground (Carry Position) | 1600 (5' - 3") |
| U | Roll Back at Ground | 50° |
| T | Depth of the Bucket | 80 (0' - 3") |
Engine
| Engine | PERKINS 1104D-44TA, EU NRMM 97/68/EC, EURO III A, |
| Gross Power: | 74.5KW (100HP) @2200 RPM |
| Torque | 410 NM @ 1400 RPM |
Transmission
ZF Power Shift Transmission with integral torque convertor.
The pedals layout and conventional 4 pattern gear lever with transmission disconnect switch adds to the overall ease of operation.On the move gear changes are possbile.
Option: SMART HTS offers state of the art open loop Hydrostatic drive(Patent pending).
Axles
Rear: Drive axle rigidly mounted, incorporates Max-trac torque proportioning differential, driven by short propshaft from gear box.
Front: Steer axle, centrally pivoted with oscillation angle ±16°.
Breaks
Service: Hydraulically actuated, duel line, self adjusting, compensated oil immersed, multi-disc type on the rear axle, well protected from dirt, water etc., requiring no maintenance. Operation Through independent pedals linked together for normal use.
Two independently operatable foot pedals enable machine to maneuver in tight spaces.
Parking: Hand operated, oil immersed multi disc on the rear axle.
Steering
Full power, front wheel hydraulic power steering with manual capability in the event of engine or hydraullic power failure.
Hydraulic supply from pump via priority valve. Working pressure psi (240 bar)
Drive
4 WD available
Electricals
180 Ampere-hour 12 volts battery system with alternator and full road lighting.
Tyres
Front: 2WD: 9.00X16 - I6PR, 4WD: 12.5/80X18 -12PR
Rear: 2WD&4WD :16.9X28 -12PR(STD INDUSTRIAL TYRE) : 14.00X25-20PR(HEAVY DUTY TYRE)
Turning Circle
Inner wheels bracked
A* Outside loader bucket 8.8 m
B Outside Wheels 6.3 m
Inner wheels not bracked
A* Outside loader bucket 11.6 m
B Outside Wheels 8.9 m
Speed
| Forward | Max 40 Km/Hr |
| Reverse | Max 22 Km/Hr |
Hydraulics
SMART technology hydraulics : 3335 psi (230 bar).
Pump flow : 145 LPM@ 2200RPM.
Pump Type : Gear Pump
Weight
8200 Kgs with Standard GP bucket option.
Service Capacities
| System | Service | |
| Hydraulic Tank | 120 Ltr | 100 Ltr |
| Fuel Tank | 115 Ltr | - |
| Engine Coolant | 17 Ltr | 15 Ltr |
| Engine Oil | 10 Ltr | 10 Ltr |
| Transmission | 19.5 Ltr | 16 Ltr |
| Rear axle | 17 Ltr | 17 Ltr |
| 4WD Front Axle | 8 Ltr | 8 Ltr |

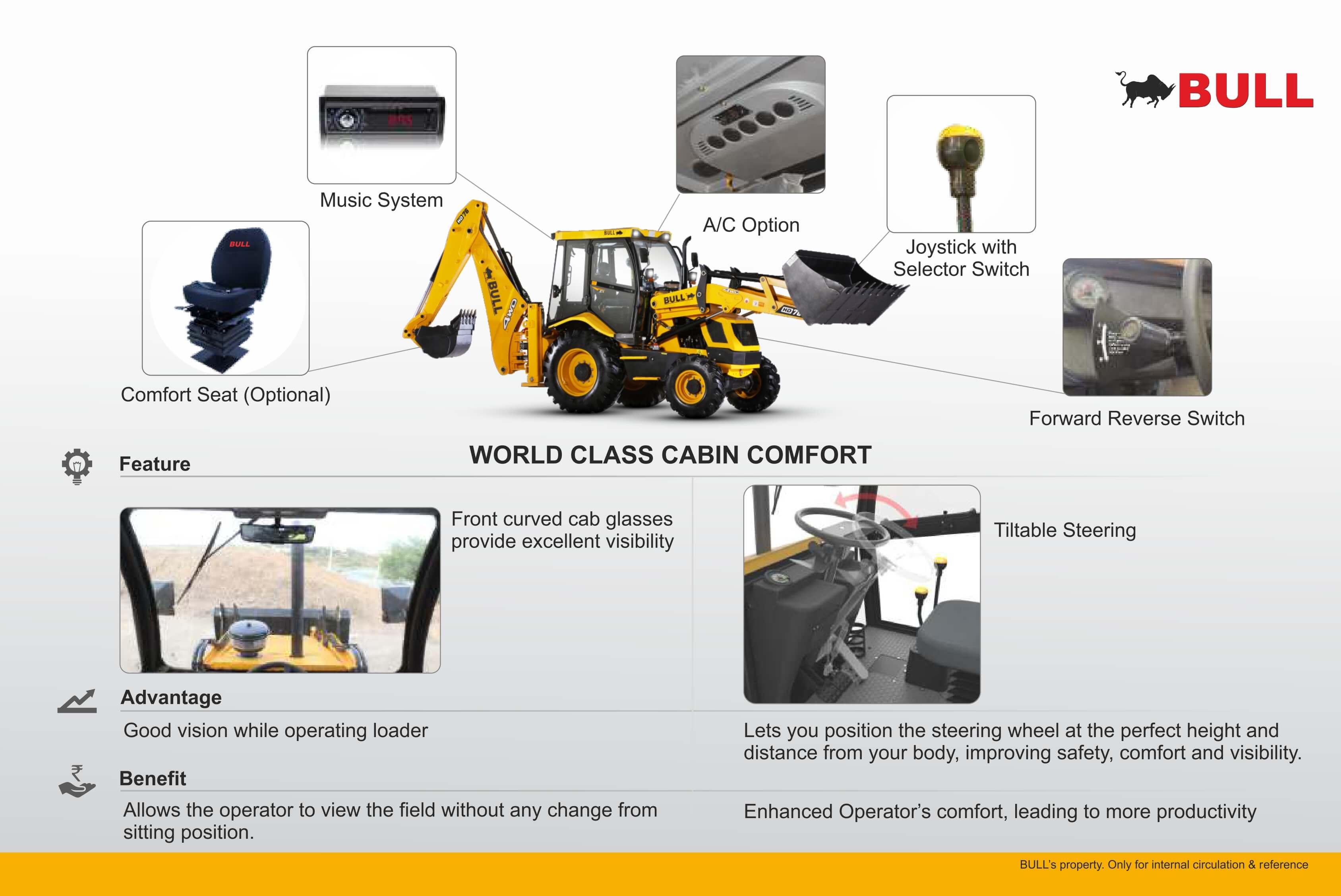

CAB
- Front Curved cab glasses provide excellent visibility.
- Excellent operator safety. Conforms to ROPS and FOPS standards .
- Plenty of legroom minimises fatigue and allows the operator to work un-interrupted for long hours.
- A fully adjustable seat combined with ergonomically positioned controls and soft touch steering wheel.
- Cab provides easy 'walk through' two door access. Other features include seat belt, large convex rear view mirror, interior light, front screen wiper, front and rear horn, hazard warning system, tool box and helper seat.
- Instrumentation panel is positioned on the right hand side includes engine speed, engine hours, fuel level and water temperature.
- Audible and visual fault warning system for alternator charge, coolant temperature, engine oil pressure, blocked air filter, transmission oil temperature and hand-brake on.
Options
Excavator Buckets
Capacities
0.27 cu.m (standard)
Options
- 0.12 cu.m
0.17 cu.m
0.21 cu.m
Ditch Cleaning Bucket
Taper Ditching Bucket

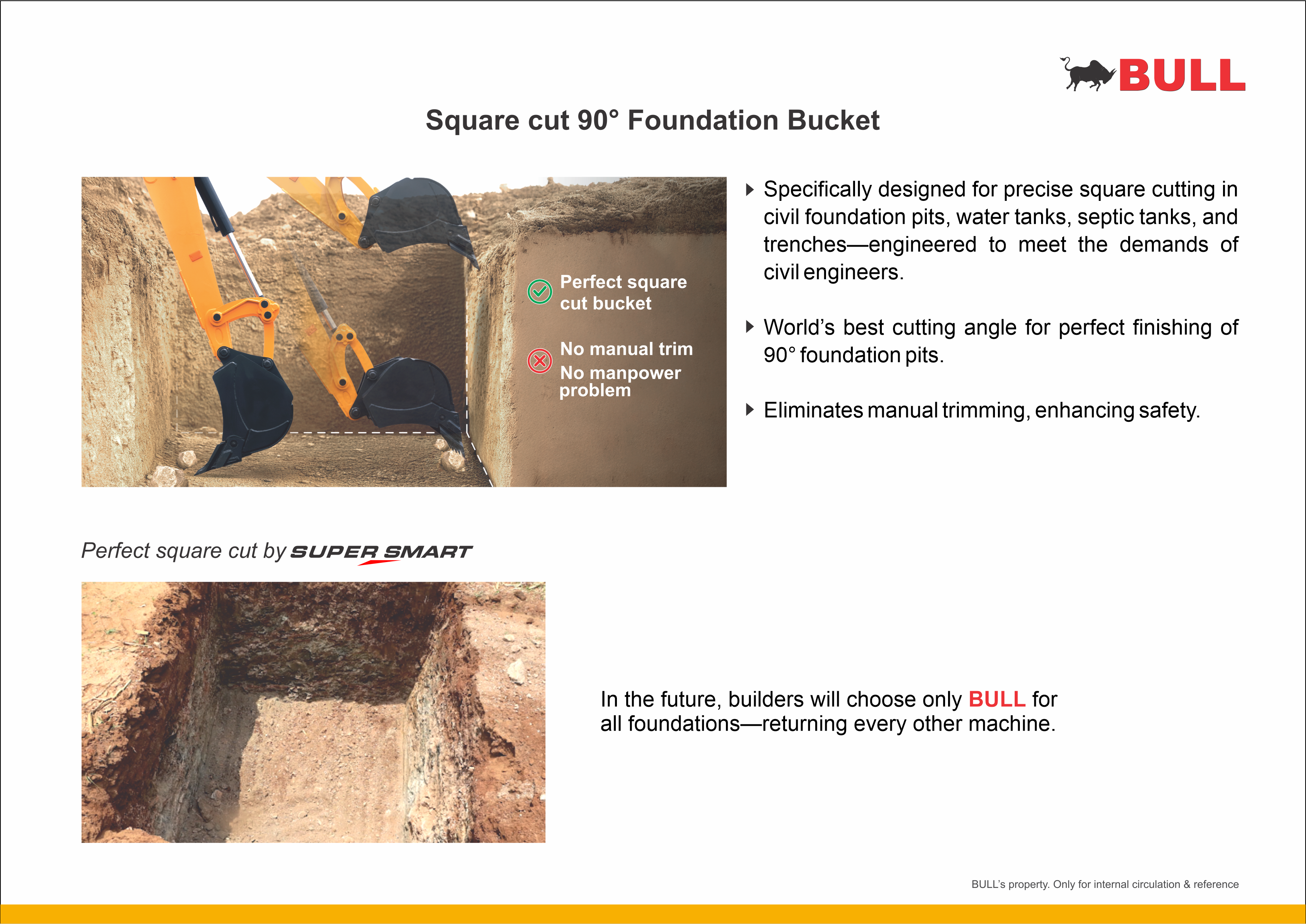

Square hole bucket
Rock Breaker
Ripper Tooth
Trench Bucket
Loader booster bucket with 12ft-11 inch dump height
6 in 1 Bucket
4 wheel drive
