BULL

High performance machine with 60HP (44.8Kw) engine and CARRARO synchro-shuttle transmission.

catalog
Catalog
video
Video
60backhoe

Bucket Options

Different types of application specific quick interchangeable loader bucket options.

Technical information

  • Dimensions
  • Engine
  • Transmission
  • Axles
  • Breaks
  • Steering
  • Electricals
  • Tyres
  • Turning Circle
  • Speed
  • Hydraulics
  • Weight
  • Service Capacities
  • CAB
  • Options

Dimensions

60loader

Excavator Performance

    Strandard
    meter ft -inch
  Standard Bucket Capacity 0.23 cu.m (standard)
A Maximum DIG Depth 3.56m 11 ft - 8.1 in
B Reach Ground Level to Rear wheel center 6.32m 20 ft - 8.7 in
C Reach Ground Level to slew center 5.1m 16 ft - 8.7
D Reach at full Height to slew center 2m 6 ft - 6.7 in
F Maximum working Height 5.4m 17 ft - 8.5 in
G Maximum Load over Height 3.74m 12 ft - 3.2 in
J Bucket Rotation - Power 200 degree
  Bucket Tear out Force 5610 kgf
  Dipper Tear our Force 2200 kgf

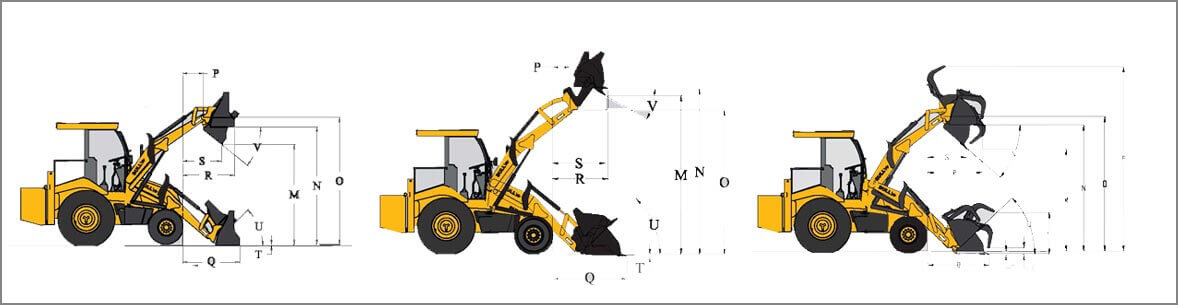

Loader Performance

    With Link Bracket Without Link Bracket
    meter ft -inch meter ft -inch
  Standard Bucket Capacity 1.1 cu.m G.P Showel
M Dump Height 2.93 m 9ft-7.3in 2.96 m 9ft-8.5in
N Load Over Height 3.39 m 11ft-1.4in 3.39 m 11ft-1.4in
O Pin Height 3.61 m 11ft-10in 3.61 m 11ft-10in
P Pin Forward Reach 0.42 m 1ft-4.6in 0.42 m 1ft-4.6in
Q Reach at Ground 1.60 m 5ft-2.8in 1.47 m 4ft-9.84in
R Reach at full height 1.42 m 4ft-7.8in 1.28 m 4ft-2.4in
S Reach at full Height bkt Dumped 1.1 m 3ft-7.2in 0.89 m 2ft-11in
T Below ground level DIG Depth 0.08 m 3 in 0.1 m 4 in
U Roll back at Ground 50 degree 49 degree
V Dump Angle 45 degree 45 degree
L Width over bucket (standard) 2.22 m
  Bucket Break-out Force 7178 kgf
  Loader Arm Break-out Force 4606 kgf
  Pay Load 1560 kgf

Engine

Engine Kirloskar 4R 810T, Turbo Change BS - III Diesel Engine
Gross Power: 44.8 Kw
Torque 60 HP at 2400 RPM

Transmission

BULL SMART comes with CARRARO synchro-shuttle transmission that provides superb drive power in all conditions. it consists of a 4-speed fully synchromesh gearbox with integral torque convertor and electrically operated forward & reversing shuttle.

The pedals layout and conventional 4 pattern gear lever with transmission disconnect switch adds to the overall ease of operation. On the move gear changes are possible.

Option: SMART HST offers state of the art open loop Hydrostatic drive(Patent pending).

Axles

Rear:Drive axle rigidly mounted, incorporates Max-trac torque proportioning differential, driven by short propshaft from gear box.

Front: Steer axle, centrally pivoted with oscillation angle ±16°.

Breaks

Service: Hydraulically actuated, duel line, self adjusting, compensated oil immersed, multi-disc type on the rear axle, well protected from dirt, water etc., requiring no maintenance. Operation Through independent pedals linked together for normal use.

Two independently operatable foot pedals enable machine to maneuver in tight spaces.

Parking: Hand operated, oil immersed multi disc on the rear axle.

Steering

Full power, front wheel hydraulic power steering with manual capability in the event of engine or hydraullic power failure.

Hydraulic supply from pump via priority valve. Working pressure 1958 psi (135 bar)

Electricals

88 Ampere-hour 12 volts battery system with alternator and full road lighting.

Tyres

Front: 2WD: 9.00X16 - I6 PR, 4WD: 12.5/80X18 -12 PR

Rear: 2WD&4WD : 14.00X24 -16 PR

Turning Circle

Inner wheels bracked

A* Outside loader bucket -8.62 m

B Outside Wheels -6.1 m

Inner wheels not bracked

A* Outside loader bucket -10.85 m

B Outside Wheels -8.1 m

Speed

Gear Forward Km/hr Reverse Km/hr
1st 5.81 5.81
2nd 9.5 9:3
3rd 20.2 Not Recommended
4th 30 Not Recommended

Hydraulics

SMART technology hydraulics : 2900 PSI (200bar).

Pump flow : 120 lpm at 2200rpm.

Weight

Shipping: 6720 kgs

Service Capacities

Hydraulic system 130 Ltr
Fuel Tank 128 Ltr
Engine Coolant 12 Ltr
Engine Oil 8Ltr
Transmission 19.5 Ltr
Rear axle 17lt

CAB

  • Front Curved cab glasses provide excellent visibility
  • Excellent operator safety. Conforms to ROPS and FOPS standards .
  • Plenty of legroom minimises fatigue and allows the operator to work un-interrupted for long hours.
  • A fully adjustable seat combined with ergonomically positioned controls and soft touch steering wheel.
  • Cab provides easy 'walk through' two door access. Other features include seat belt, large convex rear view mirror, interior light, front screen wiper, front and rear horn, hazard warning system, tool box and helper seat.
  • Instrumentation panel is positioned on the right hand side includes engine speed, engine hours, fuel level and water temperature.
  • Audible and visual fault warning system for alternator charge, coolant temperature, engine oil pressure, blocked air filter, transmission oil temperature and hand-brake on.

Options

Excavator Buckets

Capacities

- 0.23 cu.m (standard)

Options

- 0.1 cu.m

-0.17 cu.m

- 0.21 cu.m

Rock Breaker

Ripper Tooth

Loader booster bucket with 12.98 feet dump height

4 wheel drive
